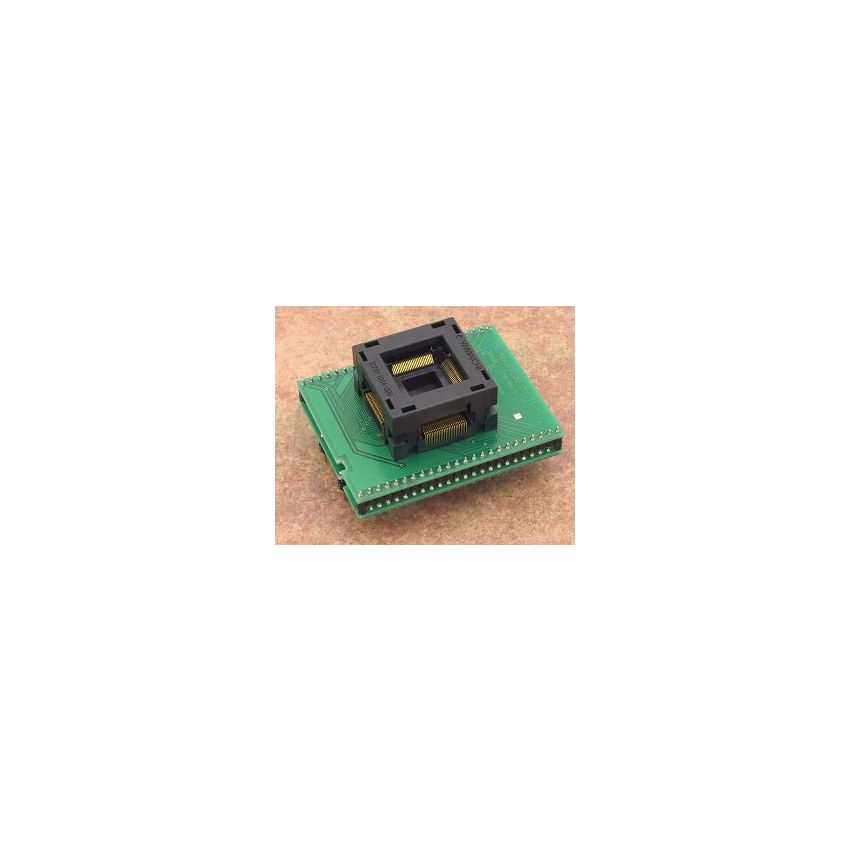

DIL48/QFP100 ZIF PLD-11

The special adapter is designed specifically for Lattice Clock Manager devices ispClock5500/ispClock5600/ispClock5600A in a TQFP100 package. It is manufactured in Slovakia and has an order number of 70-0735. The socket used in this adapter is a ZIF (Zero Insertion Force) type, with an operating mechanical warranty of 10,000 actuations, ensuring durability and longevity. The ZIF socket is designed to securely hold and make reliable connections with the Lattice Clock Manager devices during programming and testing processes.



The bottom of the adapter features 2 rows of 2x 24 pins each, arranged in a square pattern with a pin pitch of 0.6x0.6mm and a row spacing of 600mil. This configuration allows for easy and secure connection to the target Lattice Clock Manager device, ensuring accurate and reliable programming and testing operations. The adapter is designed to provide a reliable interface for working with the Lattice Clock Manager devices, making it a valuable tool for electronic engineers and technicians.
