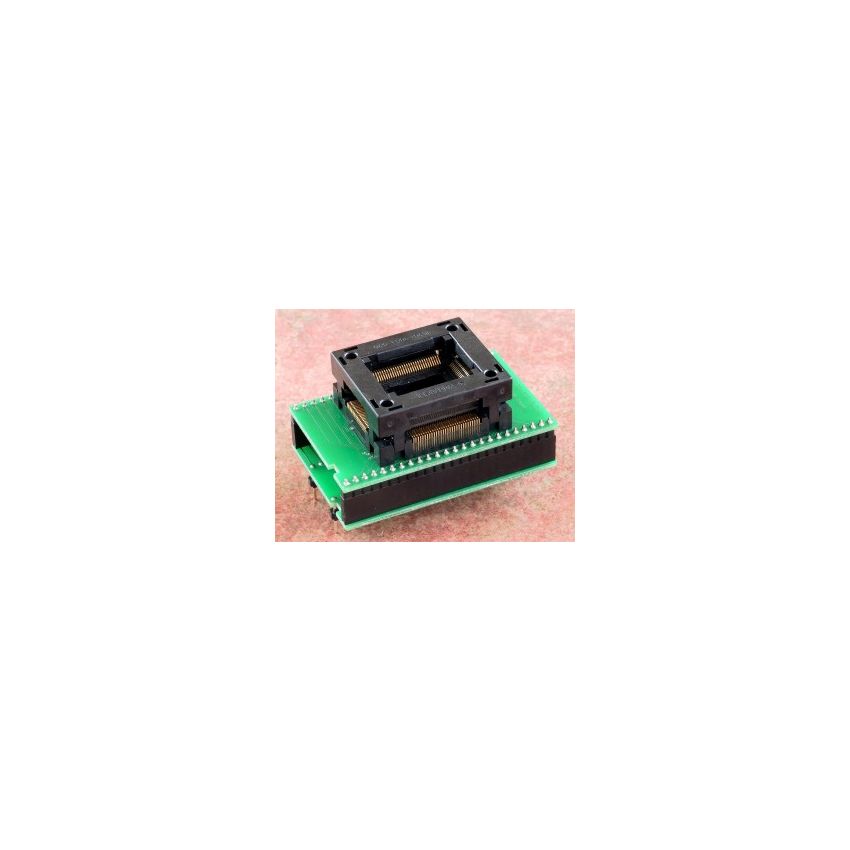

DIL48/QFP100 ZIF PLD-1

The special adapter is specifically designed for CPLD (Complex Programmable Logic Device) devices, particularly Altera EPM7096, in a PQFP100 package. It is made in Slovakia and identified by Ord. no. 70-0294.



The adapter features a ZIF (Zero Insertion Force) socket with an operating (mechanical) warranty of 10,000 actuations. The ZIF socket allows for easy and secure insertion and removal of the Altera EPM7096 device during programming or testing operations, without the need for excessive force that could potentially damage the device or the adapter.



The bottom part of the adapter has 2 rows of 2x24 pins, arranged in a square pattern with a pitch of 0.6x0.6mm (600 mil) between rows. These pins are designed to interface with the Altera EPM7096 device in a PQFP100 package, providing a reliable and efficient solution for programming and testing operations.



The special adapter is made in Slovakia and identified by Ord. no. 70-0294. It features a ZIF QFP100 socket of the OpenTop type and is specifically designed for Altera EPM7096 devices in a PQFP100 package, providing a reliable and efficient solution for programming and testing these devices.
