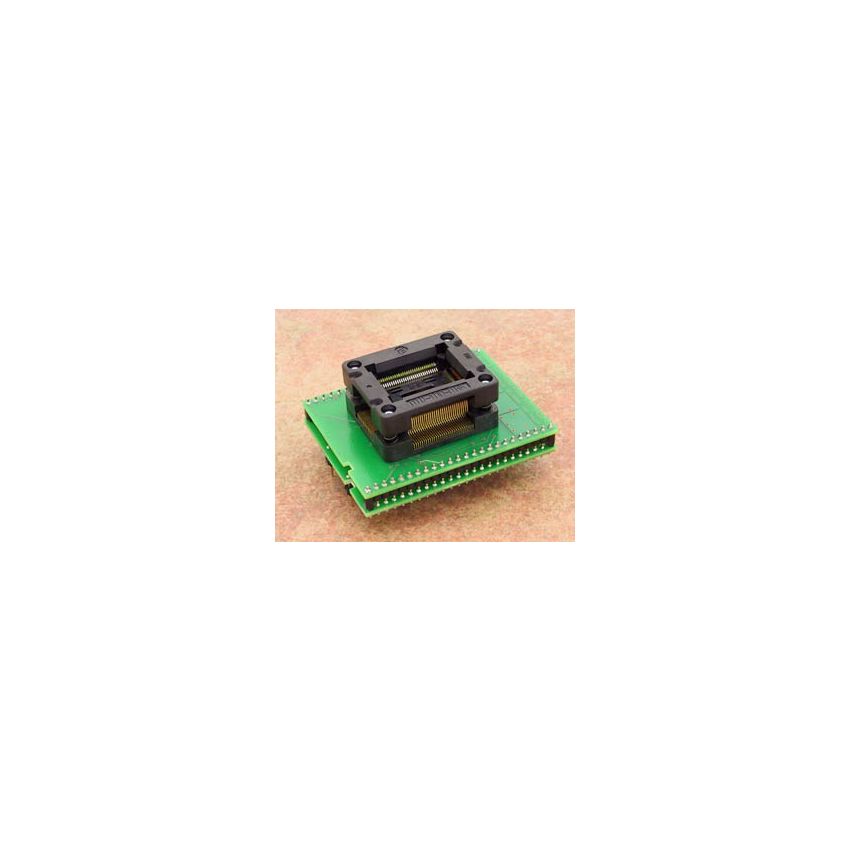

DIL48/QFP100 ZIF PCD-1

The special adapter with Ord. no. 70-0499 is designed for use with NXP/Philips PCD807xx family devices in a LQFP100 (Low-Profile Quad Flat Package) package. This adapter is specifically tailored for efficient and reliable programming or testing of these NXP/Philips devices.



The adapter features a ZIF (Zero Insertion Force) socket with an operating (mechanical) warranty of 10,000 actuations, ensuring durability and long-lasting performance even with repeated use. The ZIF socket is of the OpenTop type, which allows for easy insertion and removal of the LQFP100 package during programming or testing.



The bottom board of the adapter is designed with 2 rows of 2x24 pins, arranged in a square pattern with a pin spacing of 0.6x0.6mm, and rows spaced 600 mil apart. These pins are designed to provide efficient and reliable connectivity to the NXP/Philips PCD807xx family device in a LQFP100 package.



The adapter is made in Slovakia, adhering to high-quality standards to ensure reliable performance. The Ord. no. 70-0499 serves as a unique identifier for this specific adapter, making it easy to identify and track in a professional environment.



It is important to follow the manufacturer's guidelines for proper usage of the special adapter for NXP/Philips PCD807xx family devices, including adherence to the specified mechanical warranty for the ZIF socket, to ensure correct functionality and avoid potential damage to the devices or the adapter.
