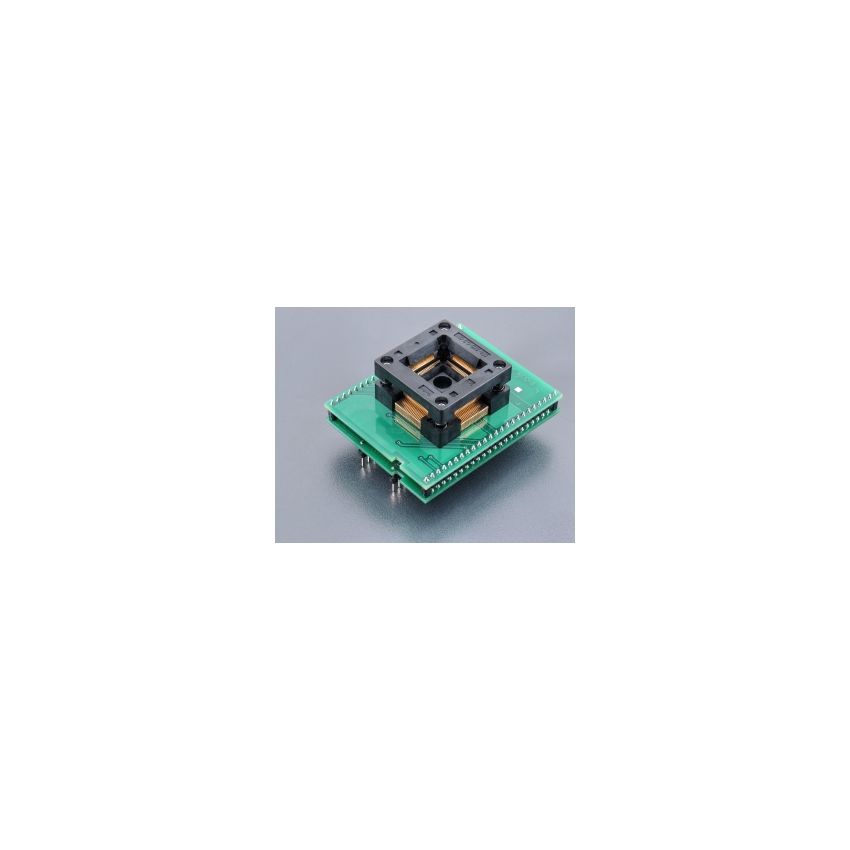

DIL48/QFP100 ZIF NEC-8

The special adapter with Ord. no. 70-1057 is designed specifically for use with NEC V850 and V851 Flash MCU family devices in a QFP100 package, such as uPD70F3706. It features a ZIF (Zero Insertion Force) socket with an operating (mechanical) warranty of 10,000 actuations, ensuring durability and reliability during repeated insertions and removals.



The adapter is manufactured in Slovakia to high-quality standards and is tailored for NEC V850 and V851 devices in a QFP100 package.



The socket on the adapter is of the OpenTop type, which allows for easy placement and removal of the NEC V850 and V851 devices without the need for any additional tools. The OpenTop design provides convenient access to the device for programming or testing purposes.



The bottom of the adapter features 2x24 square pins with a size of 0.6x0.6mm and a row spacing of 600mil. These pins are designed to provide accurate alignment and electrical connectivity between the adapter and the NEC V850 and V851 devices.
