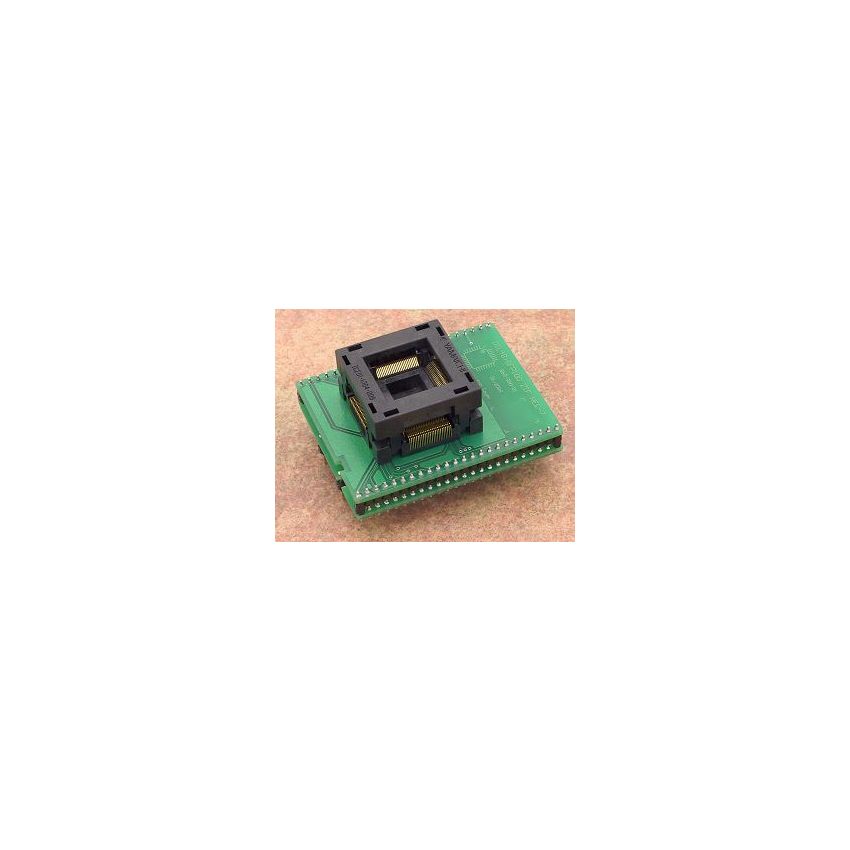

DIL48/QFP100 ZIF NEC-7

The special adapter is designed for NEC 78K0/0S/0R Flash MCU family in QFP100 package, such as UPD78F0395, and is specifically tailored for efficient programming and testing operations. The ZIF socket has a mechanical warranty of 10,000 actuations, ensuring durability and reliability during repeated use. The adapter is manufactured in Slovakia, known for its high-quality manufacturing standards. The order number for this special adapter is 70-0869.



The ZIF socket on this adapter is of the QFP100 OpenTop type, allowing for easy insertion and removal of the QFP100 package during programming and testing operations. The bottom of the adapter features a 2x24 pin configuration, arranged in a square pattern with a pitch of 0.6x0.6mm and rows spacing of 600mil. This configuration ensures a secure and reliable connection to the NEC 78K0/0S/0R Flash MCU family in QFP100 package.



Overall, this special adapter is designed to provide a reliable and efficient solution for programming and testing NEC 78K0/0S/0R Flash MCU family in QFP100 package, with a mechanical warranty of 10,000 actuations, and it is manufactured to high quality standards in Slovakia.
