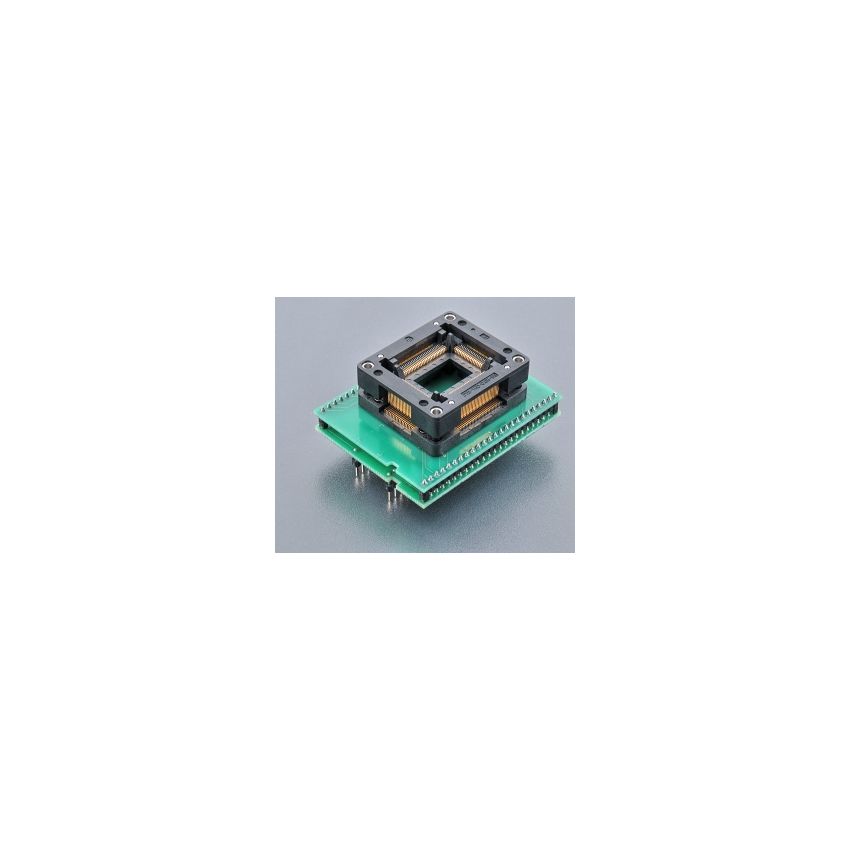

DIL48/QFP100 ZIF MB90F-5

The special adapter with order number 70-0711 is designed for use with Fujitsu MB90F54x and MB90F591 microcontrollers in QFP100 packages. This adapter provides a reliable and convenient solution for programming and testing these microcontrollers during development and production processes.



The adapter features a ZIF (Zero Insertion Force) socket in a QFP100 package with an OpenTop type design, allowing for easy insertion and removal of the devices for programming and testing purposes. The ZIF socket has a mechanical warranty of 10,000 actuations, ensuring durability and long-term reliability.



The bottom board of the adapter features 2 rows of 2x24 pins in a square configuration, with a pin pitch of 0.6x0.6mm and row spacing of 600mil. This configuration is specifically designed for compatibility with Fujitsu MB90F54x and MB90F591 microcontrollers in QFP100 packages, providing precise and secure connections for programming and testing purposes.



The adapter is made in Slovakia to high manufacturing standards, ensuring quality and reliability. The order number for this special adapter is 70-0711, and it is designed for use with Fujitsu MB90F54x and MB90F591 microcontrollers in QFP100 packages.
