DIL48/QFP100 ZIF MB90F-4

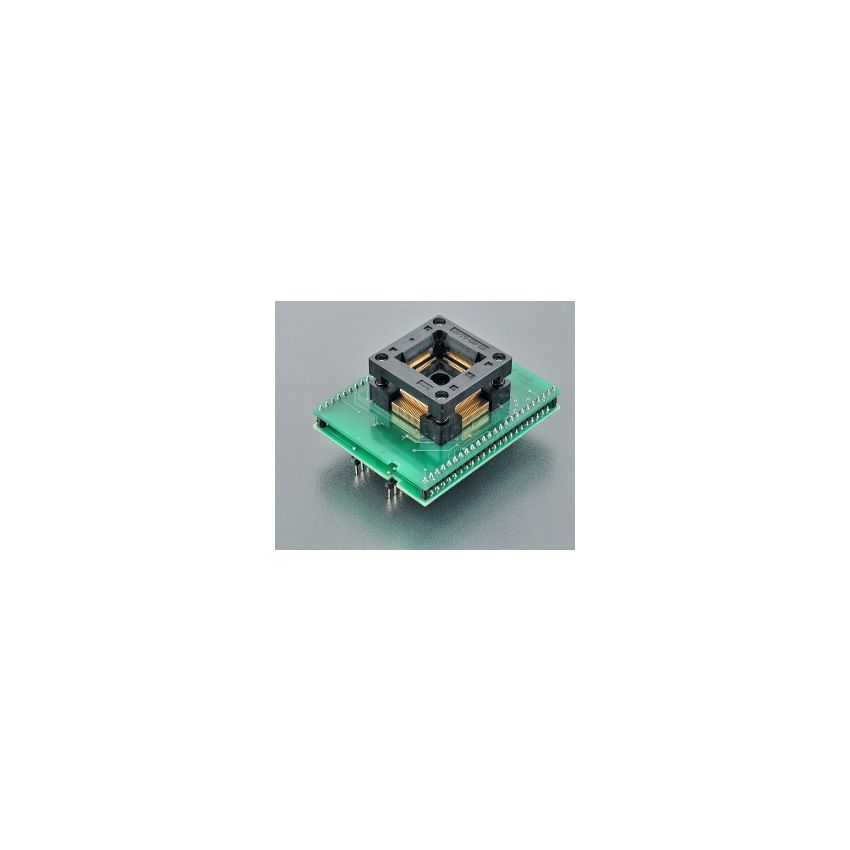

The special adapter with Ord. no. 70-0505 is designed for use with Fujitsu MB90F34x and MB90F867 microcontrollers in LQFP100 package. It features a ZIF (Zero Insertion Force) socket with an operating (mechanical) warranty of 10,000 actuations, ensuring reliable and durable performance during repeated use for programming or testing.



The adapter is made in Slovakia, adhering to high-quality standards to ensure reliable operation. The Ord. no. 70-0505 serves as a unique identifier for this specific adapter, making it easy to identify and track in a professional environment.



The ZIF socket on the adapter is of QFP100 OpenTop type, specifically designed for use with QFP100 packages. It features a bottom layout with 2 rows of 2x24 pins arranged in a square pattern, with a pin spacing of 0.6x0.6mm and row spacing of 600mil. This allows for secure and reliable connection between the adapter and the microcontroller during programming or testing.



It is important to follow the manufacturer's guidelines for proper usage of the adapter, including compatibility with specific microcontroller models and package dimensions, to ensure correct functionality and avoid potential damage to the devices or the adapter.
