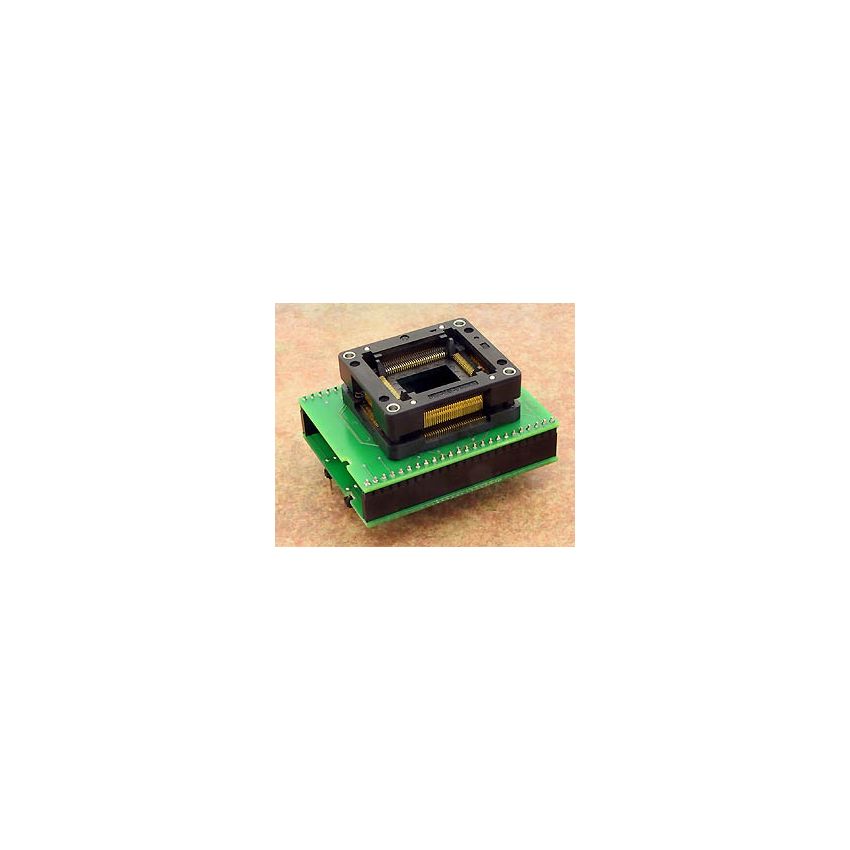

DIL48/QFP100 ZIF MB90F-3

The special adapter with Ord. no. 70-0492 is specifically designed for use with Fujitsu MB90F94x series of microcontrollers in a QFP100 (Quad Flat Package) package. This adapter is used for programming or testing the MB90F94x microcontrollers in a convenient and reliable manner.



The adapter features a ZIF (Zero Insertion Force) socket with an operating (mechanical) warranty of 10,000 actuations, ensuring reliable and durable performance during repeated use. The ZIF socket is of the OpenTop type, providing easy insertion and removal of the QFP100 package during programming or testing.



The bottom board of the adapter features 2 rows of 2x24 pins, arranged in a square pattern with a pin spacing of 0.6x0.6mm, and rows spaced 600 mil apart. These pins are designed to provide efficient and reliable connectivity to the Fujitsu MB90F94x microcontrollers in a QFP100 package.



The adapter is made in Slovakia, adhering to high-quality standards to ensure reliable performance. The Ord. no. 70-0492 serves as a unique identifier for this specific adapter, making it easy to identify and track in a professional environment.



It is important to follow the manufacturer's guidelines for proper usage of the special adapter for Fujitsu MB90F94x microcontrollers to ensure correct functionality and avoid potential damage to the microcontrollers or the adapter.
