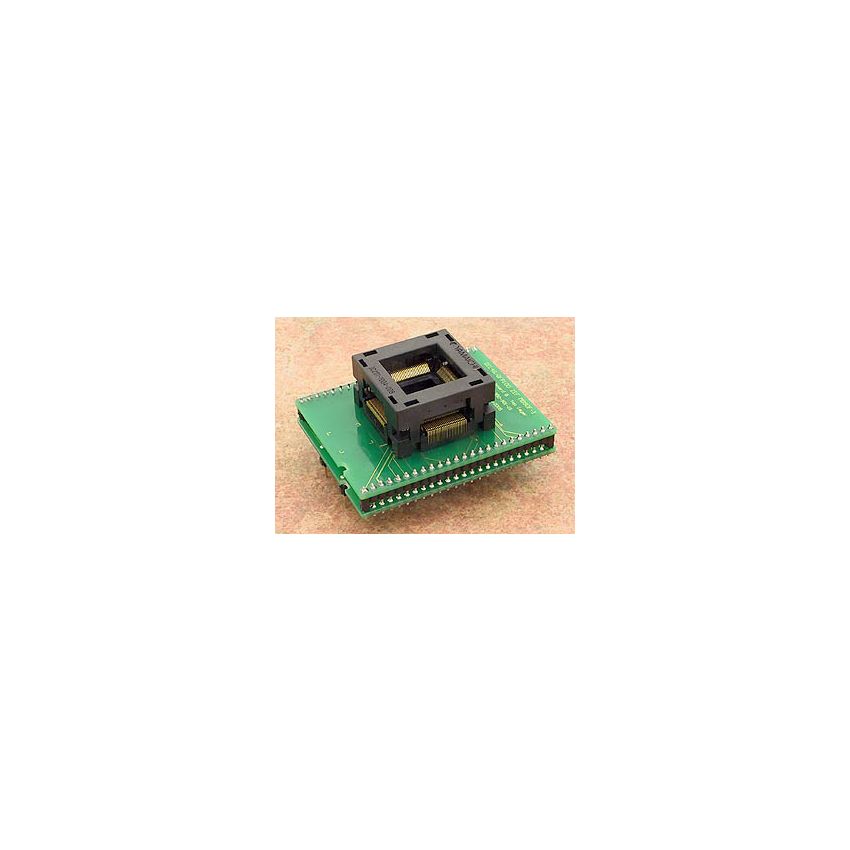

DIL48/QFP100 ZIF MB90F-1

The special adapter with Ord. no. 70-0350 is specifically designed for Fujitsu MB90F546GSPFV microcontrollers in LQFP100 package. It features a ZIF (Zero Insertion Force) socket with an OpenTop type, allowing for easy insertion and removal of the microcontroller without the need for additional tools.



The ZIF socket on this adapter has an operating (mechanical) warranty of 10,000 actuations, ensuring its durability and long-term use in programming and testing operations. The bottom board of the adapter has 2 rows of 2x 24 pins each, arranged in a square pattern with a pitch of 0.6x0.6mm and rows spacing of 600mil, providing precise and reliable connections to the microcontroller during programming and testing.



The special adapter with Ord. no. 70-0350 is made in Slovakia using high-quality materials and manufacturing processes to ensure its reliability and performance. It is specifically designed for Fujitsu MB90F546GSPFV microcontrollers in LQFP100 package, making it a suitable solution for programming and testing these devices in a professional setting.
