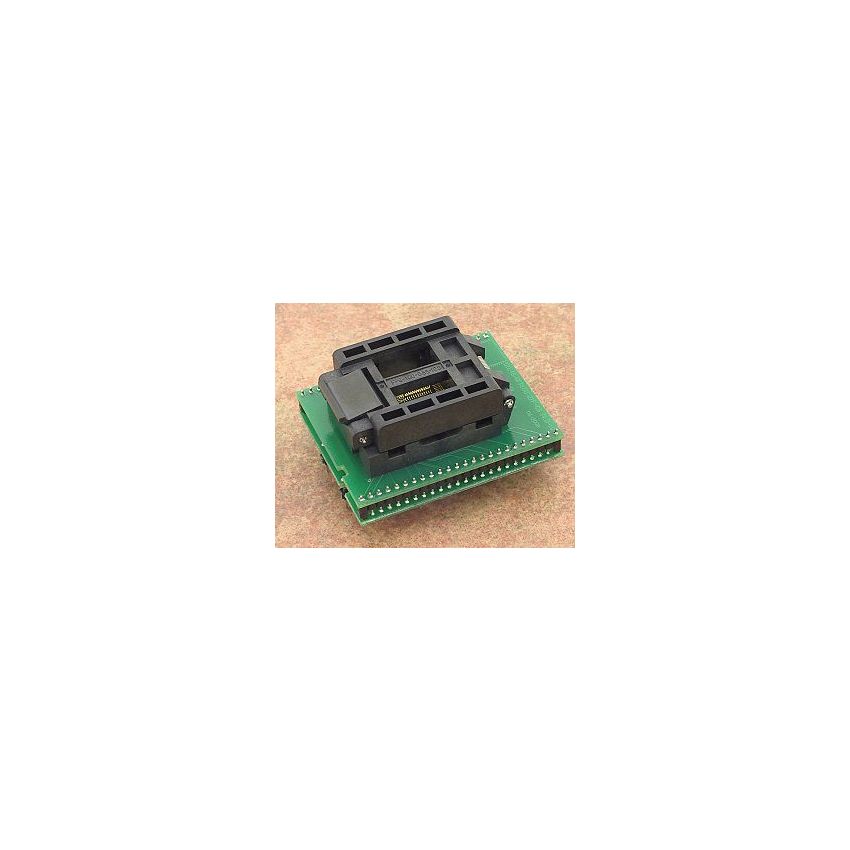

DIL48/QFP100 ZIF-CS PLD-10

The special adapter with order number 70-0719 is designed for use with Altera Enhanced Configuration Devices in PQFP100 package, specifically for OPTION 2 configuration. It features a ZIF (Zero Insertion Force) socket with an operating (mechanical) warranty of 10,000 actuations, ensuring durability and reliability during repeated use.



The adapter is designed and manufactured in Slovakia to high-quality standards. The order number for this adapter is 70-0719, and it is specifically designed for use with PQFP100 packages for Altera Enhanced Configuration Devices in OPTION 2 configuration. The ZIF socket on the adapter is of Clamshell type, which allows for easy insertion and removal of PQFP100 packages during programming and testing processes.



The bottom side of the adapter features 2 rows of 2x24 pins arranged in a square configuration with a pin pitch of 0.6x0.6mm and row spacing of 600mil, providing precise and secure connections to the target system for programming and testing purposes.



This special adapter is specifically assigned for Altera Enhanced Configuration Devices in PQFP100 package for OPTION 2 configuration, making it suitable for programming and testing applications involving these specific devices. With its high-quality construction and ZIF socket with a mechanical warranty of 10,000 actuations, this adapter offers reliability and convenience for programming and testing processes.
