DIL48/QFP100 ZIF-CS NEC-4

The special adapter with order number 70-0490 is specifically designed for use with NEC uPD78P064 and uPD78P0308 microcontrollers in a QFP100 package. This adapter provides a reliable solution for programming and testing these NEC microcontrollers during development and production processes.

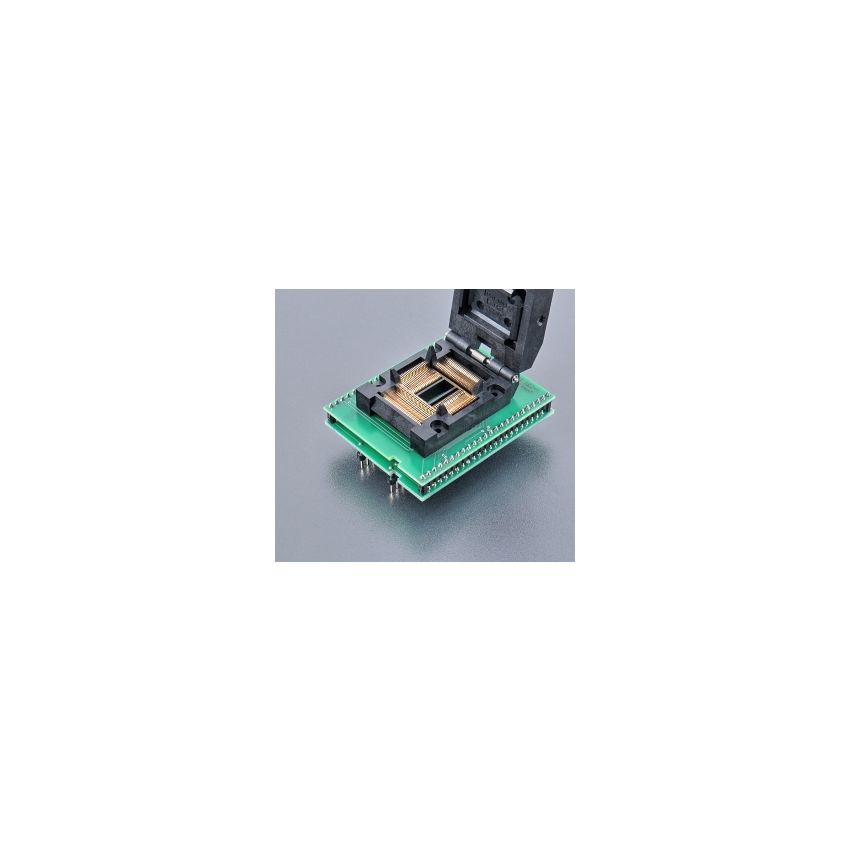

The adapter features a ZIF (Zero Insertion Force) socket in a QFP100 package with a ClamShell type design, providing easy insertion and removal of the microcontrollers for programming and testing purposes. The ZIF socket has a mechanical warranty of 10,000 actuations, ensuring durability and long-term reliability.



The bottom board of the adapter features 2 rows of 2x24 pins in a square configuration, with a pin pitch of 0.6x0.6mm and row spacing of 600mil. This configuration is specifically designed for compatibility with NEC uPD78P064 and uPD78P0308 microcontrollers, ensuring precise and secure connections for programming and testing purposes.



The adapter is made in Slovakia to high manufacturing standards, ensuring quality and reliability. The order number for this special adapter is 70-0490, and it is designed specifically for use with NEC uPD78P064 and uPD78P0308 microcontrollers in a QFP100 package.
