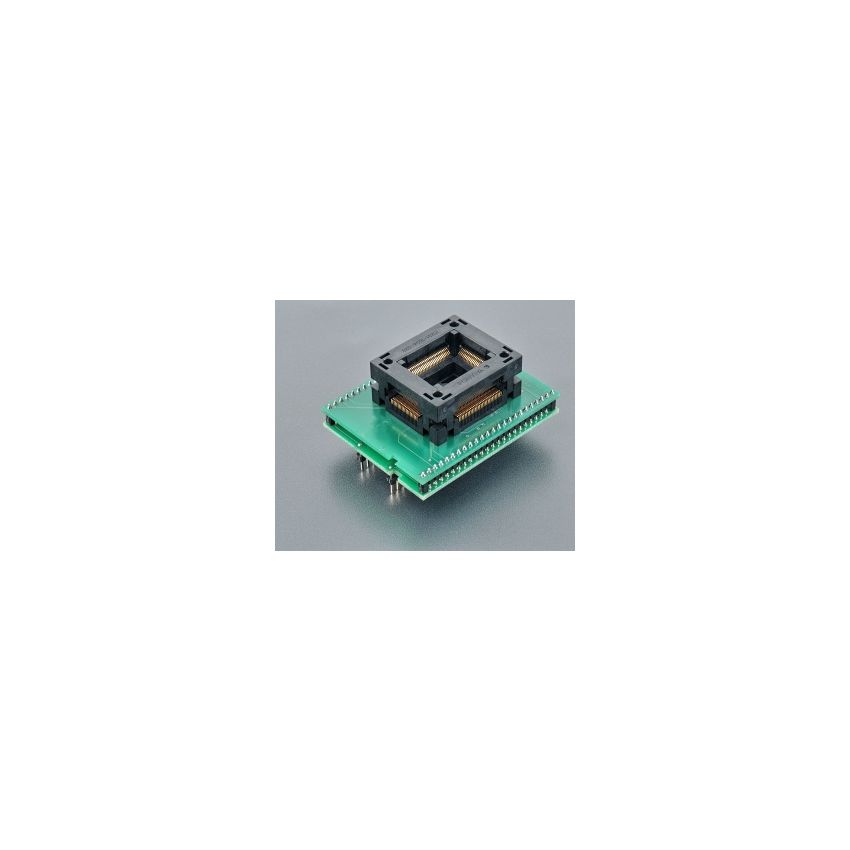

DIL48/QFP100-2 ZIF M16C/62-1

The special adapter with Ord. no. 70-0373 is designed for Renesas (Mitsubishi) M16C/6x and M16C/Nx microcontrollers in QFP100 package. It features a ZIF (Zero Insertion Force) socket that is specifically designed to accept QFP100 packages with ease, using an OpenTop type design for convenient insertion and removal of the devices during programming and testing operations.



The bottom board of the adapter features 2 rows of 2x 24 pins each, arranged in a square pattern with a pitch of 0.6x0.6mm and rows spacing of 600mil. This allows for precise and reliable connections between the adapter and the target devices, ensuring accurate programming and testing.



The ZIF socket on the adapter has a mechanical warranty of 10,000 actuations, providing durability and reliability in professional use. It is designed to withstand repeated actuations without compromising its performance or lifespan, ensuring a long-lasting and dependable solution for programming and testing Renesas (Mitsubishi) M16C/6x and M16C/Nx microcontrollers.



The adapter is made in Slovakia using high-quality materials and manufacturing processes, ensuring its quality and performance. The Ord. no. 70-0373 serves as a unique identifier for this specific adapter, making it easy to identify and track in a professional environment.



Please note that this adapter is specifically designed for Renesas (Mitsubishi) M16C/6x and M16C/Nx microcontrollers in QFP100 package, and may not be suitable for other devices or packages. It is important to verify the compatibility of the adapter with the specific devices you intend to use before proceeding with programming or testing operations.
