DIL48/QFP100-1 ZIF NEC-9

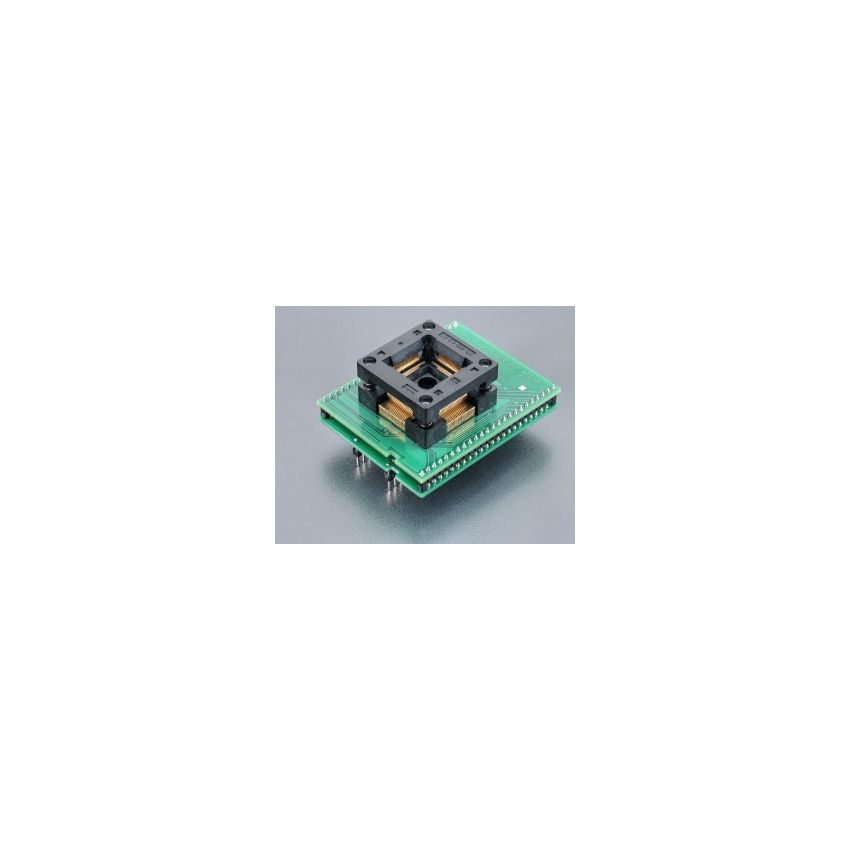

The specialized programming adapter with Ord. no. 70-1104 is designed for use with NEC/Renesas uPD70F3025A microcontrollers in QFP100 package. It features a ZIF (Zero Insertion Force) socket with an operating (mechanical) warranty of 10,000 actuations, indicating a high level of durability and reliability for repeated use.



The ZIF socket type is OpenTop, which allows for easy insertion and removal of the QFP100 package during programming or testing processes without the need for additional tools. The bottom of the adapter has 2x24 square pins with a size of 0.6x0.6mm and rows spacing of 600mil, designed to provide accurate alignment and electrical connectivity with the corresponding pins on the target device.



The supported devices from serial number 1104-00008 are compatible with PG4UW software version 3.76 and above, while earlier serial numbers are supported from PG4UW software version 3.71h. It is important to ensure that the appropriate software version is used for programming the uPD70F3025A microcontrollers using this adapter.



The adapter is made in Slovakia, and the Ord. no. 70-1104 ensures that it is a unique product identifier.
