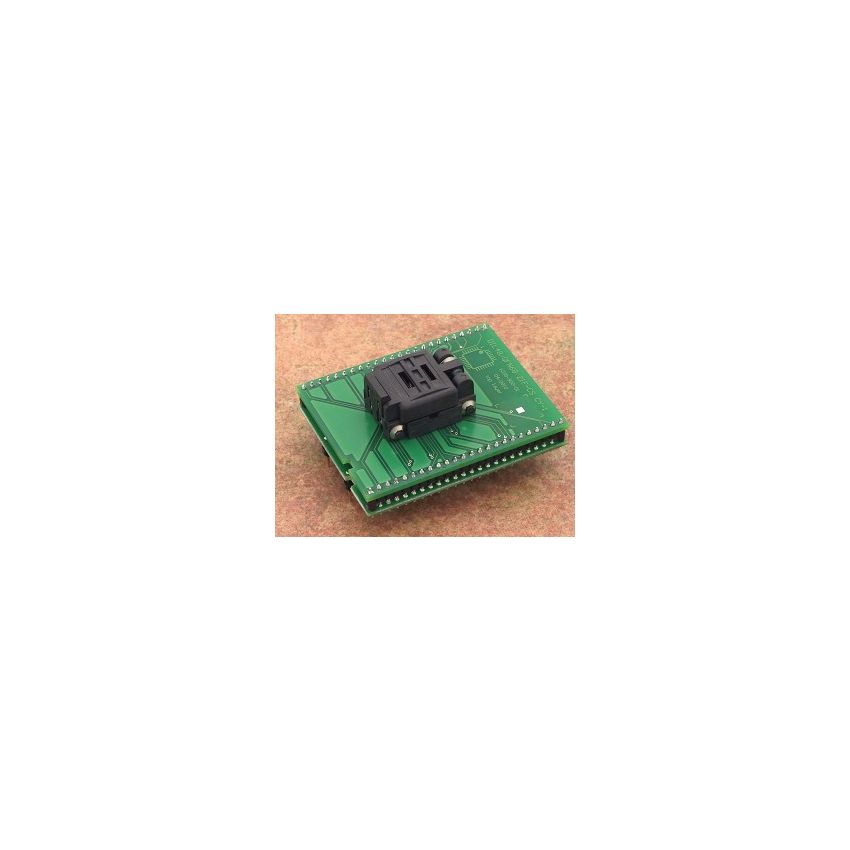

DIL48/QFN68 ZIF-CS CY-1

The special adapter with Ord. no. 70-1039 is designed for use with Cypress CY8C24994-24LFXI devices in a QFN68 (Quad Flat No-leads) package. It features a ZIF (Zero Insertion Force) socket that is of the ClamShell type, allowing for easy insertion and removal of the QFN68 package without the need for additional tools.



The ZIF socket on this special adapter is designed with a mechanical warranty of 5,000 actuations, indicating its durability and reliability in repeated usage. It is made in Slovakia, ensuring quality manufacturing standards.



The bottom board of the adapter features 2x24 square pins with a size of 0.6x0.6mm and a row spacing of 600mil. These pins are designed to provide proper alignment and electrical connectivity between the adapter and the device being tested or programmed.
