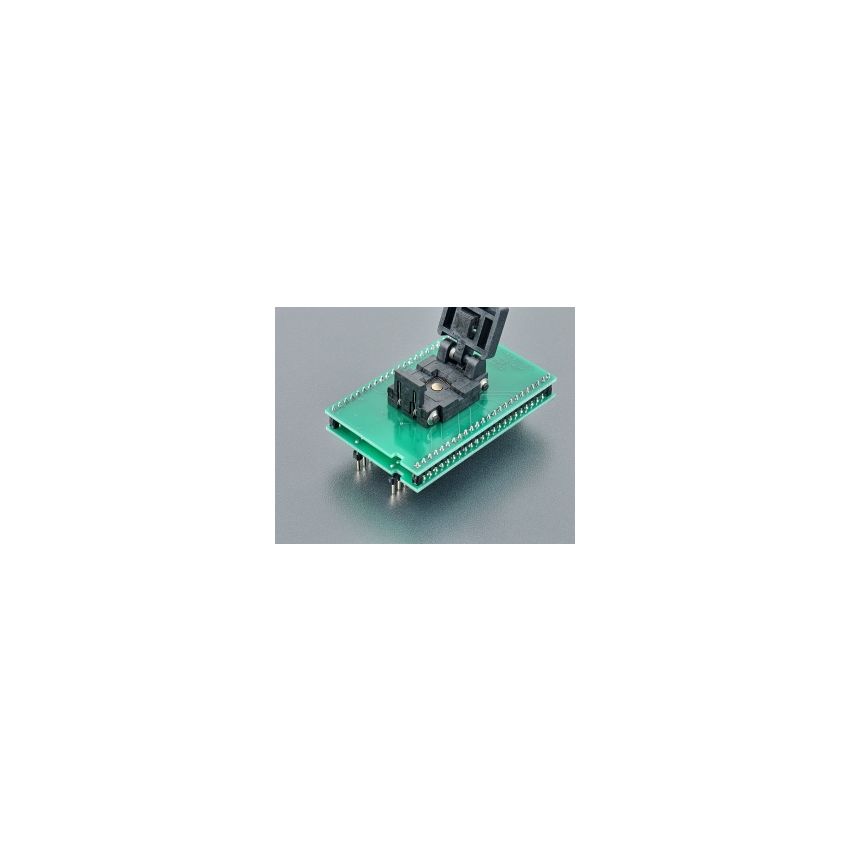

DIL48/QFN48 ZIF-CS

The universal adapter is designed for devices in MLF (Micro Lead Frame) packages such as QFN (Quad Flat No-Lead), SON (Small Outline No-Lead), and MLP (Micro Leadframe Package) with 48 pins. It is made in Slovakia and identified by Ord. no. 70-0300.



The adapter features a ZIF (Zero Insertion Force) socket with a mechanical warranty of 5,000 actuations. The ZIF socket allows for easy and secure insertion and removal of the MLF devices during programming or testing operations, without the need for excessive force that could potentially damage the devices or the adapter.



The bottom part of the adapter has 2 rows of 2x24 pins, arranged in a square pattern with a pitch of 0.6x0.6mm (600 mil) between rows. These pins are designed to interface with the 48-pin MLF devices, providing a reliable and efficient solution for programming and testing operations.



The universal adapter is made in Slovakia and identified by Ord. no. 70-0300. It features a ZIF QFN48 socket of the ClamShell type and is designed for devices in MLF packages with 48 pins, offering a versatile solution for programming and testing various MLF devices.
