DIL48/QFN48 ZIF-CS nRF-1a

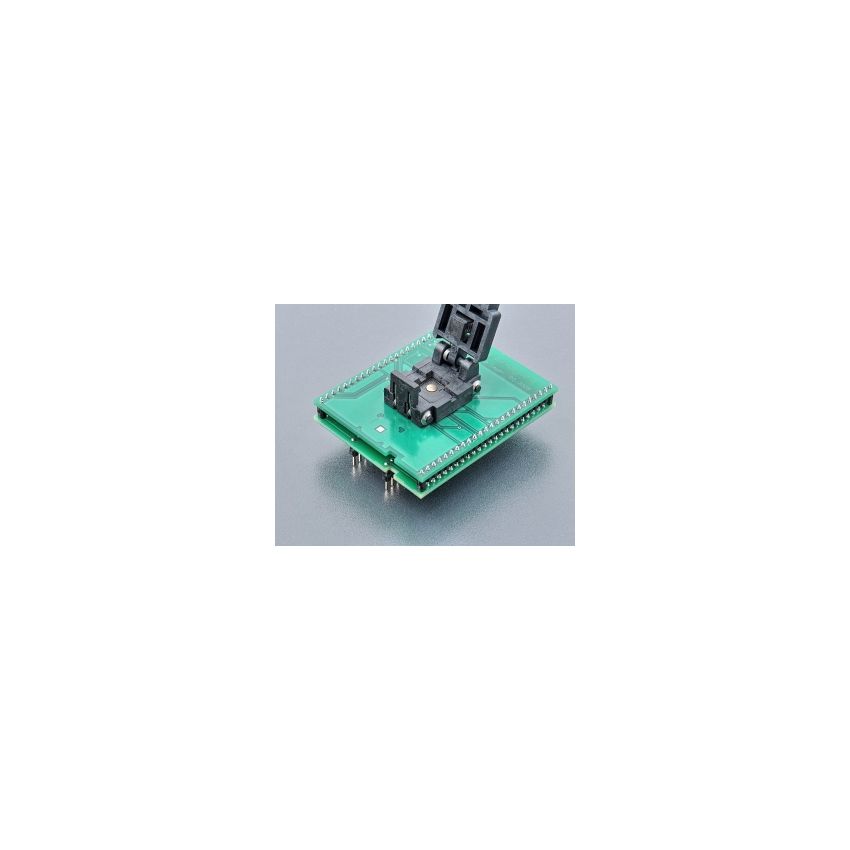

The specialized adapter with Ord. no. 70-1089A is designed specifically for Nordic Semiconductor nRF24LE1 devices in a QFN48 package. This adapter is made in Slovakia and adheres to high-quality standards to ensure reliable performance.



The adapter features a ZIF (Zero Insertion Force) socket with a ClamShell type, which allows for easy and secure insertion and removal of the QFN48 package during programming or testing. The ZIF socket has an operating (mechanical) warranty of 5,000 actuations, ensuring durability and longevity for repeated use.



The bottom board of the adapter has a 2x24 square pin configuration with a size of 0.6x0.6mm and a row spacing of 600mil. This pin configuration is designed to provide accurate alignment and electrical connectivity with the pins of the QFN48 package, ensuring proper programming or testing of the Nordic Semiconductor nRF24LE1 devices.



The adapter is supported from PG4UW software version 3.40b, indicating compatibility with the specified software version for programming or testing of the nRF24LE1 devices.
