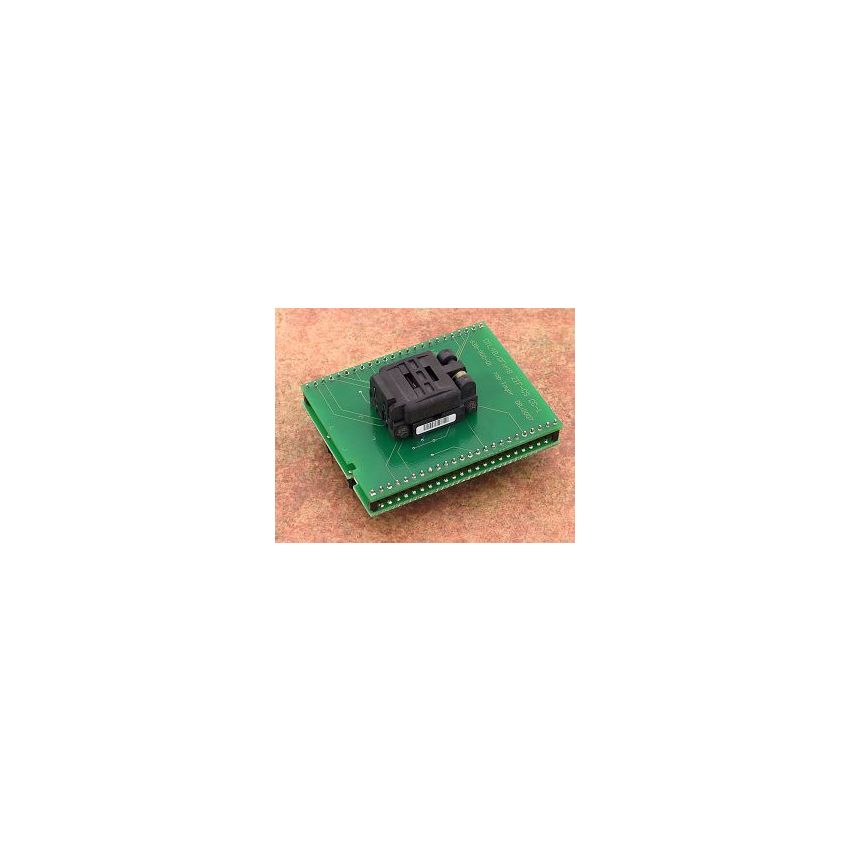

DIL48/QFN48 ZIF-CS CC-1

The special adapter with Ord. no. 70-0638 is specifically designed for use with TI/Chipcon CC24xx family of devices in QFN48 packages. The adapter features a ZIF (Zero Insertion Force) socket with an operating (mechanical) warranty of 5,000 actuations, ensuring reliable performance for multiple insertions and removals of the QFN48 package.



Socket Type: The ZIF socket on this adapter has a ClamShell type design, providing easy and secure insertion and removal of the QFN48 package.



Pin Configuration: The bottom of the adapter has 2 rows of 2x24 pins with a square pattern and a pin pitch of 0.6x0.6mm. The rows spacing is 600mil, which is a standard spacing for QFN packages.



Compatibility: The adapter is specifically designed for use with TI/Chipcon CC24xx family of devices in QFN48 packages, making it a reliable solution for programming or testing these devices.



Manufacturing: The adapter is made in Slovakia, known for its high-quality manufacturing standards, ensuring durability and reliability.



Ord. no.: The adapter is assigned with Ord. no. 70-0638, making it easy to identify and order.



The special adapter with Ord. no. 70-0638 is a reliable tool for working with TI/Chipcon CC24xx family of devices in QFN48 packages, offering a ZIF socket with a mechanical warranty, high-quality manufacturing, and compatibility with standard pin pitch and rows spacing. The ClamShell type design of the ZIF socket provides easy and secure insertion and removal of the QFN48 package, making it convenient for programming or testing purposes.
