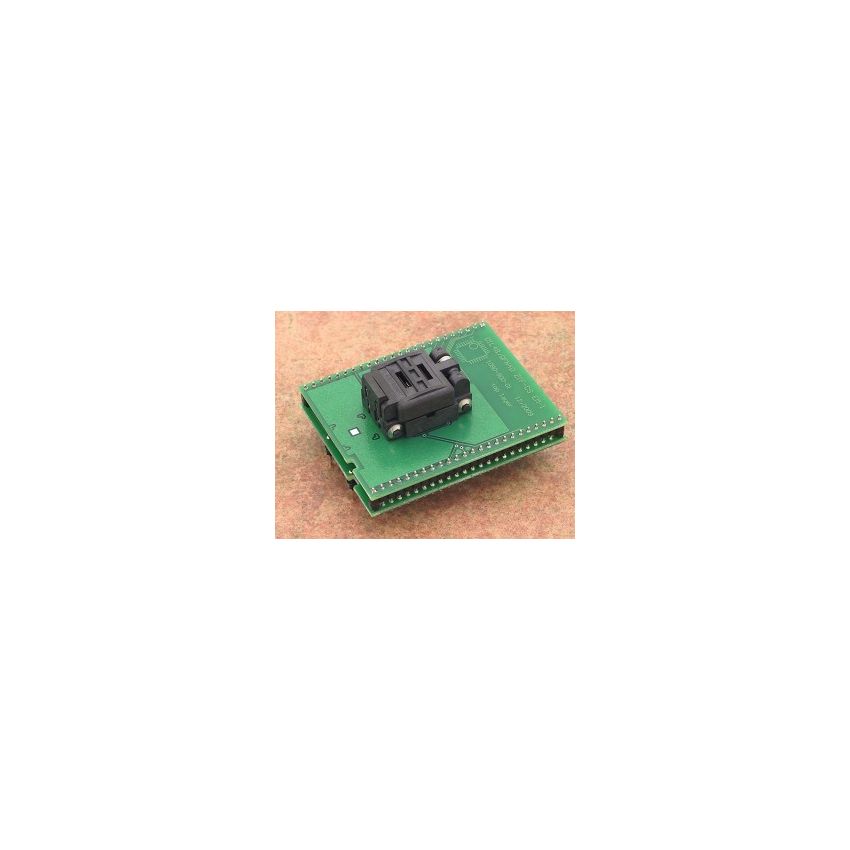

DIL48/QFN40 ZIF-CS EM-1

The special adapter with Ord. no. 70-1090 is designed for use with Ember EM260 devices in a QFN40 package. This adapter is made in Slovakia and adheres to high-quality standards to ensure reliable performance.



The adapter features a ZIF (Zero Insertion Force) socket with a ClamShell type, which allows for easy and secure insertion and removal of the QFN40 package during programming or testing. The ZIF socket has an operating (mechanical) warranty of 5,000 actuations, ensuring durability and longevity for repeated use.



The bottom board of the adapter has a 2x24 square pin configuration with a size of 0.6x0.6mm and a row spacing of 600mil. This pin configuration is designed to provide accurate alignment and electrical connectivity with the pins of the QFN40 package, ensuring proper programming or testing of the Ember EM260 devices.
