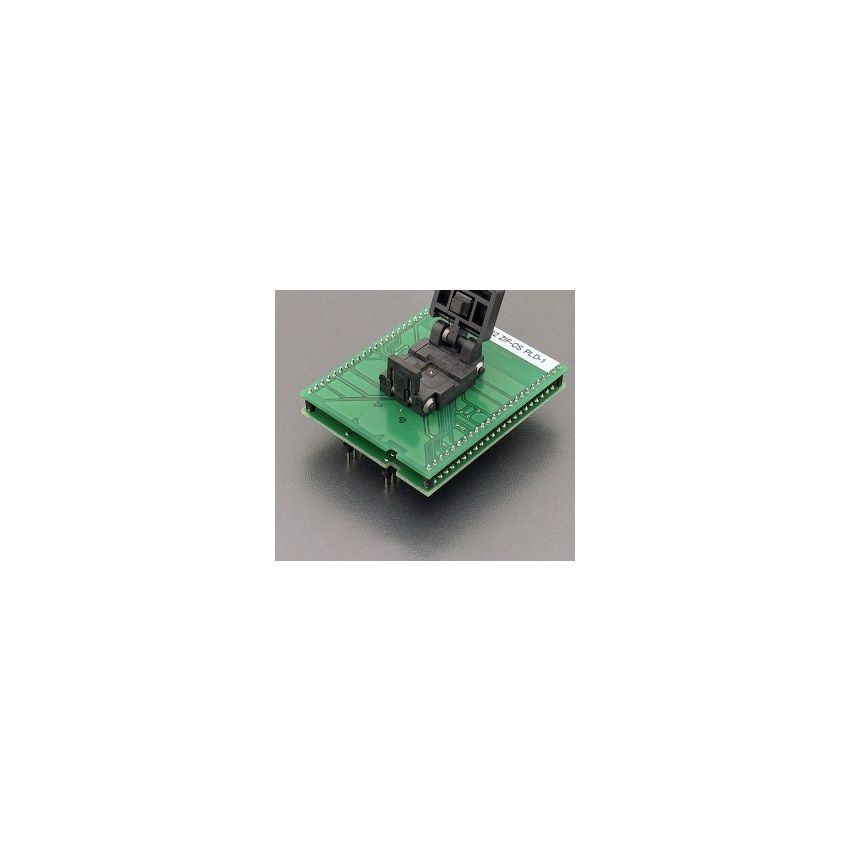

DIL48/QFN32 ZIF-CS PLD-1

The special adapter is specifically designed for Lattice Power Manager II devices, specifically the ispPAC-POWR6AT6, in QFN32/QFNS32 package. It is manufactured in Slovakia and has an order number of 70-0791. The socket used in this adapter is a ZIF (Zero Insertion Force) type with a ClamShell design, allowing for easy insertion and removal of devices during programming and testing processes.



The ZIF socket has an operating mechanical warranty of 5,000 actuations, ensuring durability and reliability for repeated use. The bottom of the adapter features 2 rows of 2x 24 pins each, arranged in a square pattern with a pin pitch of 0.6x0.6mm and a row spacing of 600mil. This configuration allows for easy and secure connection to Lattice Power Manager II devices in QFN32/QFNS32 package, making it a specialized solution for programming and testing operations involving these devices.



The special adapter is designed to provide a reliable interface for programming and testing Lattice Power Manager II devices, making it a valuable tool for electronic engineers and technicians working with these specific devices. With its durable construction and ZIF ClamShell design, it offers a convenient and reliable solution for working with Lattice Power Manager II devices in QFN32/QFNS32 package.
