DIL48/PQFP80 ZIF M58BW-1

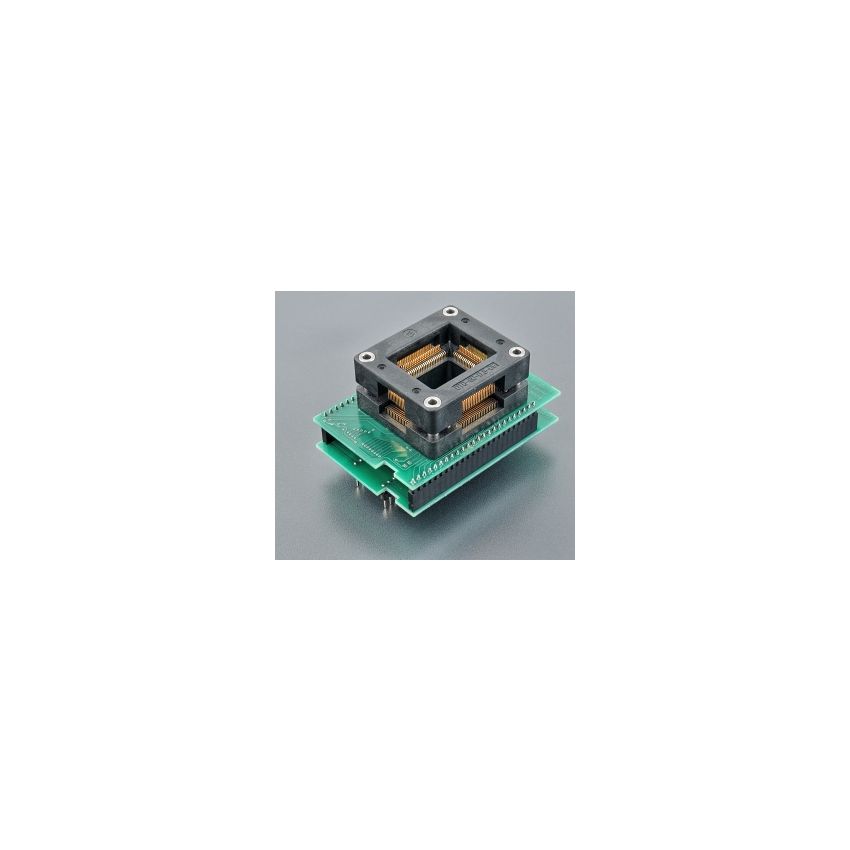

The special programming adapter is designed for programming and testing M58BW016 and S29CD016J Flash memories, which come in PQFP80 (Plastic Quad Flat Package) package. It features a ZIF (Zero Insertion Force) socket with an OpenTop type design, known as ZIF QFP80 OpenTop, which allows for easy insertion and removal of devices during programming and testing. The ZIF socket has an operating (mechanical) warranty of 10,000 actuations, indicating its durability and longevity for repeated use.

The bottom of the special programming adapter has 2 rows with 2x24 pins each, arranged in a square pattern with a pitch of 0.6x0.6mm (600 mil) between the rows. This configuration is specifically designed for M58BW016 and S29CD016J Flash memories in PQFP80 packages, providing a secure and reliable connection during programming and testing.

The special programming adapter is made in Slovakia, known for its quality manufacturing, and is identified by the Ord. no. 70-0225. This special programming adapter provides a reliable solution for programming and testing M58BW016 and S29CD016J Flash memories in PQFP80 packages, offering durability, versatility, and ease of use for programming needs.
