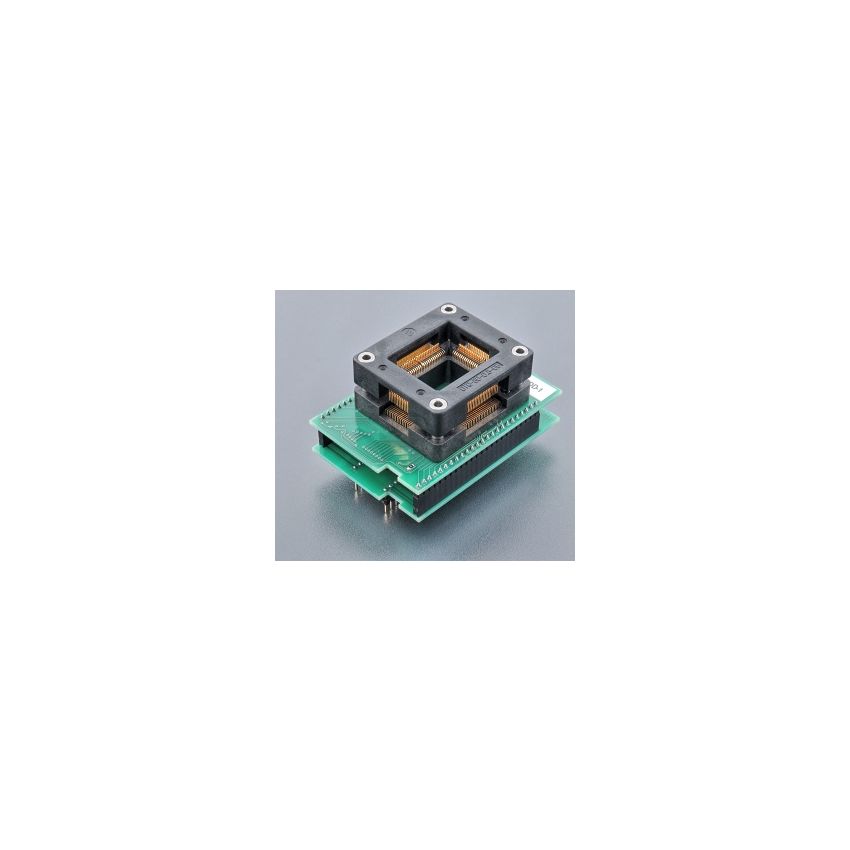

DIL48/PQFP80 ZIF 29BDD-1

The special programming adapter with Ord. no. 70-0568 is designed for use with AM29BDD160Gx and other devices in a PQFP80 (Plastic Quad Flat Pack 80) package. The adapter is made in Slovakia, adhering to high manufacturing standards to ensure quality and reliability.



The adapter features a ZIF (Zero Insertion Force) socket of OpenTop type, which allows for easy insertion and removal of the PQFP80 devices during programming or testing. The ZIF socket comes with a mechanical warranty of 10,000 actuations, ensuring durability and long-term use.



The bottom board of the adapter has 2 rows of 2x24 pins in a square pattern, with a pin pitch of 0.6x0.6mm and rows spacing of 600mil. This layout is designed to provide a reliable and efficient connection to the PQFP80 devices, ensuring accurate programming or testing results.
