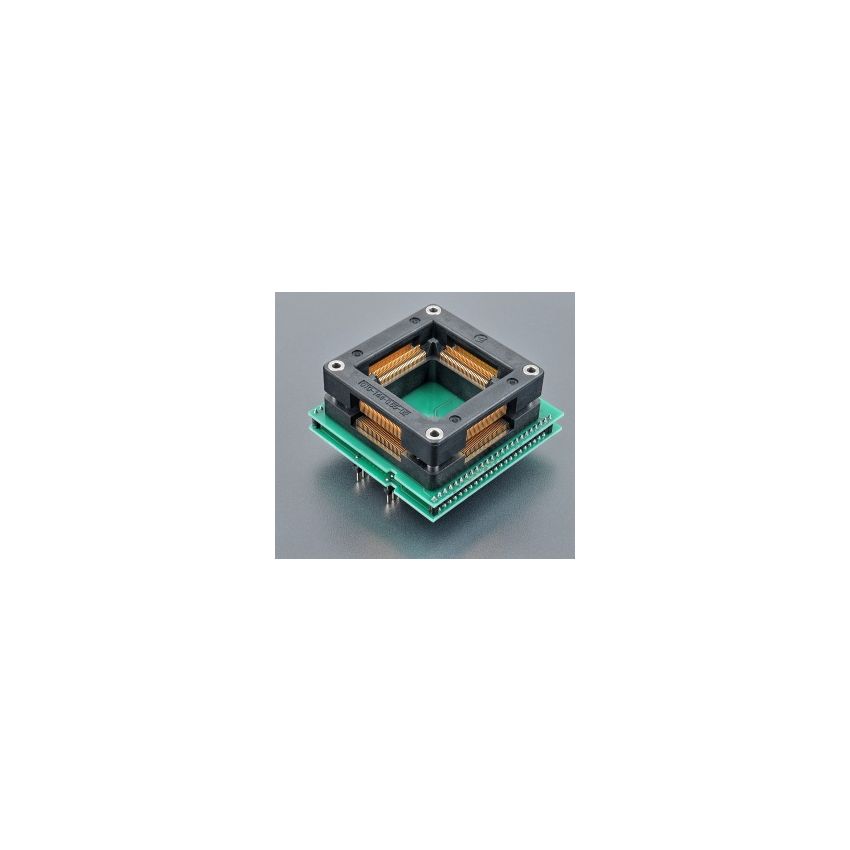

DIL48/PQFP144 ZIF ST10-1

The special adapter is designed for programming and testing ST10F168 and ST10F269 devices in PQFP144 package. It features a ZIF (Zero Insertion Force) socket with a QFP144 type design, known as OpenTop type, allowing for easy insertion and removal of devices during programming and testing. The ZIF socket has an operating (mechanical) warranty of 10,000 actuations, indicating its durability and longevity for repeated use.



The bottom of the special adapter has 2 rows with 2x24 pins each, arranged in a square pattern with a pitch of 0.6x0.6mm (600 mil) between the rows. This configuration is specifically designed for ST10F168 and ST10F269 devices in PQFP144 package, providing a secure and reliable connection during programming and testing.



The special adapter is made in Slovakia, known for its quality manufacturing, and is identified by the Ord. no. 70-0163. It provides a reliable solution for programming and testing ST10F168 and ST10F269 devices in PQFP144 package, offering durability, versatility, and ease of use for programming needs.
