DIL48/PQFP100 ZIF ST92Fxxx

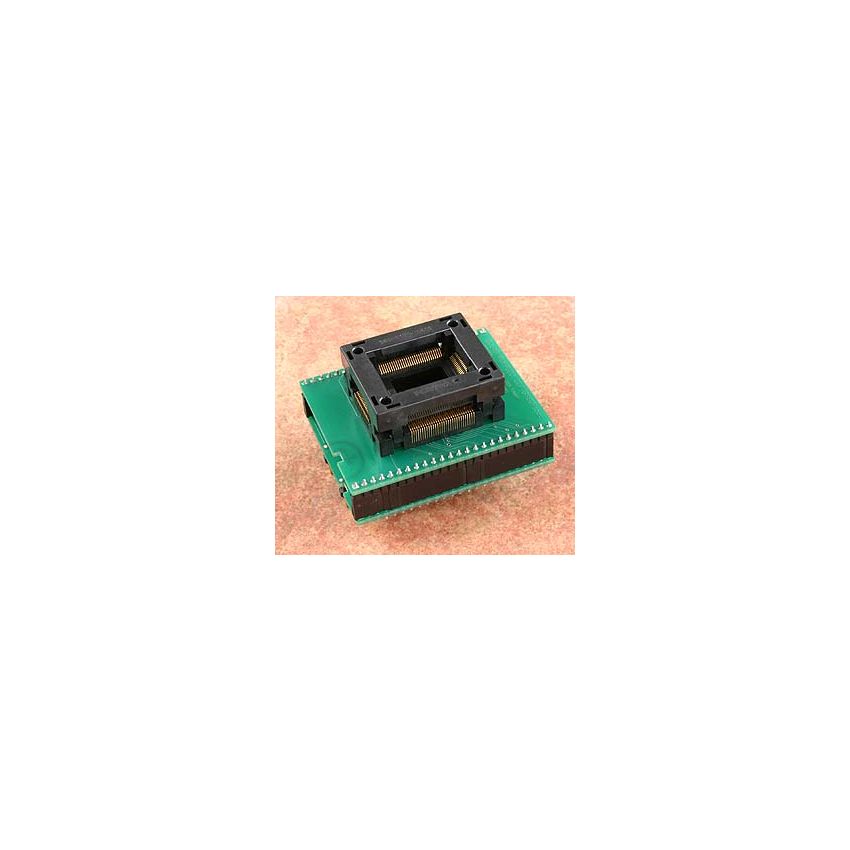

The special adapter is designed for programming and testing ST92 family microcontrollers in PQFP100 (Plastic Quad Flat Package) package. It features a ZIF (Zero Insertion Force) socket with an OpenTop type design, known as ZIF QFP100 OpenTop, which allows for easy insertion and removal of devices during programming and testing. The ZIF socket has an operating (mechanical) warranty of 10,000 actuations, indicating its durability and longevity for repeated use.



The bottom of the special adapter has 2 rows with 2x24 pins each, arranged in a square pattern with a pitch of 0.6x0.6mm (600 mil) between the rows. This configuration is specifically designed for ST92 family microcontrollers in PQFP100 packages, providing a secure and reliable connection during programming and testing.



The special adapter is made in Slovakia, known for its quality manufacturing, and is identified by the Ord. no. 70-0221. This special adapter provides a reliable solution for programming and testing ST92 family microcontrollers in PQFP100 packages, offering durability, versatility, and ease of use for programming needs.
