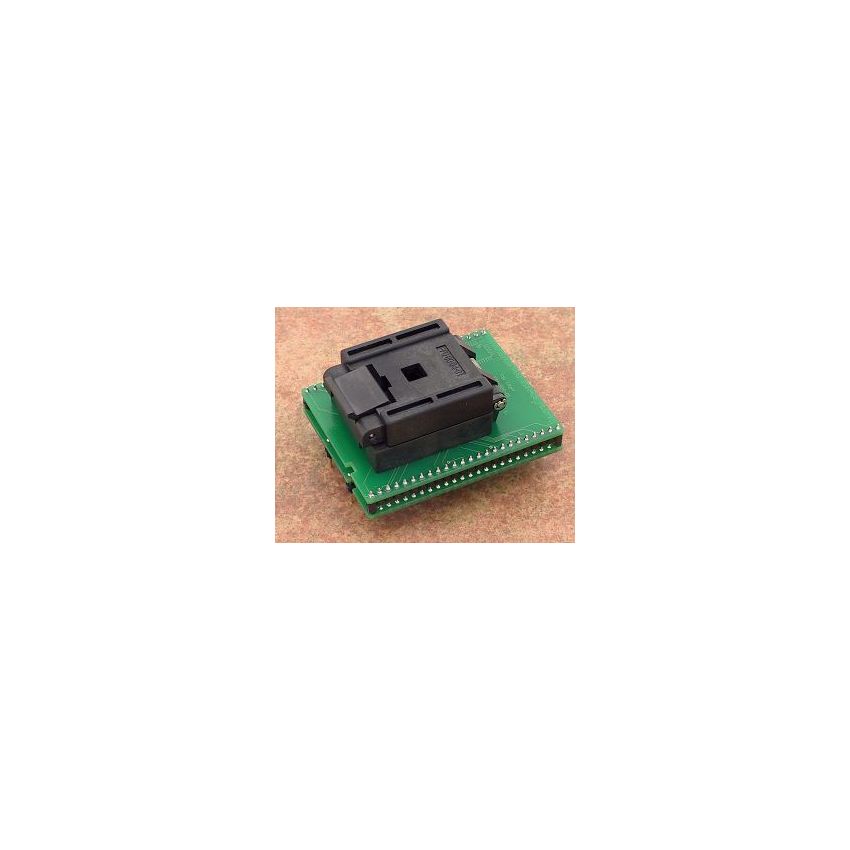

DIL48/LQFP80 ZIF-CS MLC-1

The special adapter with order number 70-0774 is designed for use with MCS Logic MLC108x (MLC1081, MLC1082) microcontrollers in an LQFP80 (Low Profile Quad Flat Package) package. It features a ZIF (Zero Insertion Force) socket with a mechanical warranty of 10,000 actuations, providing reliable and durable performance for programming and interfacing operations.



The ZIF socket on this adapter is of the ClamShell type, which allows for easy insertion and removal of the microcontroller without the need for additional tools or force. The ClamShell mechanism ensures that the microcontroller is securely held in place during programming and interfacing operations, and helps to prevent damage to the device or the adapter.



The bottom of the adapter features 2 rows of 24 pins, arranged in a square pattern with a pin pitch of 0.6x0.6mm and rows spacing of 600mil. These pins provide the necessary connections for interfacing with the LQFP80 package of the MCS Logic MLC108x microcontrollers, enabling data transfer and programming operations.



The order number for this special adapter is 70-0774, and it is made in Slovakia to high-quality standards. It is specifically designed for use with MCS Logic MLC108x (MLC1081, MLC1082) microcontrollers in an LQFP80 package, and provides reliable and convenient programming and interfacing capabilities with a ZIF socket that has a mechanical warranty of 10,000 actuations.
