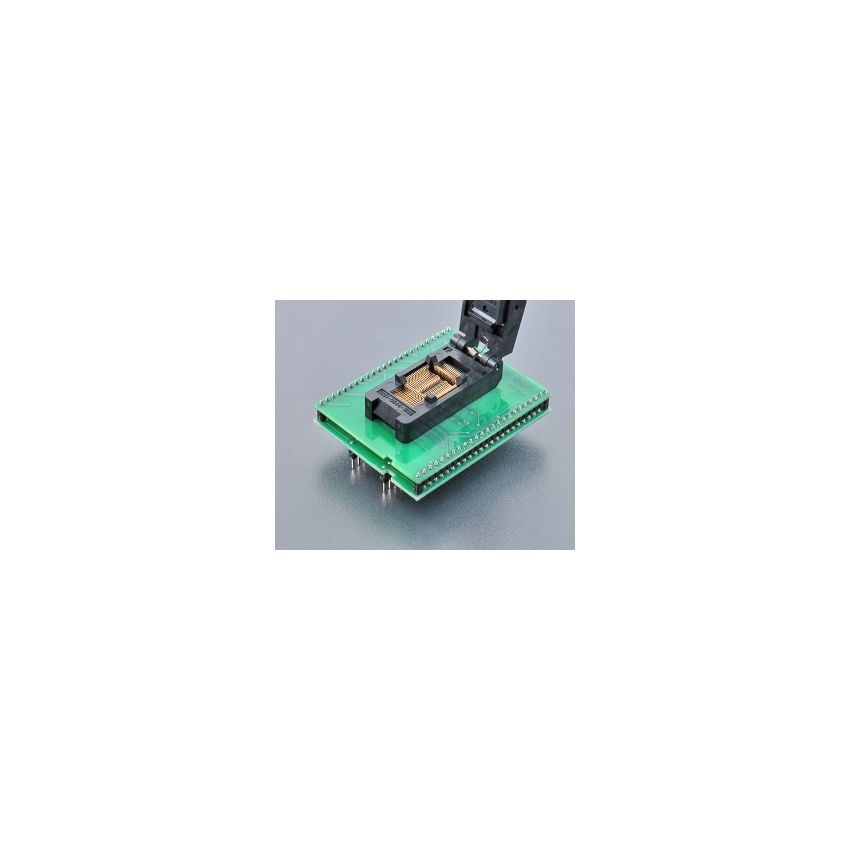

DIL48/LQFP64 ZIF-CS MB90F-2

The special adapter with Ord. no. 70-0383 is designed for use with Fujitsu MB90F462 and MB90F49x microcontrollers in LQFP64 package. It is specifically designed for programming and testing operations, allowing for easy insertion and removal of the microcontroller during these processes.



The adapter features a ZIF (Zero Insertion Force) socket with a ClamShell type design, which allows for convenient placement and removal of the microcontroller without applying excessive force. The ZIF socket has a mechanical warranty of 10,000 actuations, ensuring durability and reliability in professional use.



The bottom board of the adapter has 2 rows of 2x24 pins each, arranged in a square pattern with a pitch of 0.6x0.6mm and rows spacing of 600mil. This configuration is designed to match the pinout of Fujitsu MB90F462 and MB90F49x microcontrollers in LQFP64 package, ensuring accurate and reliable connections between the adapter and the target device during programming and testing operations.



The adapter is made in Slovakia using high-quality materials and manufacturing processes, ensuring its quality and performance. The Ord. no. 70-0383 serves as a unique identifier for this specific adapter, making it easy to identify and track in a professional environment.



Please note that this adapter is designed specifically for use with Fujitsu MB90F462 and MB90F49x microcontrollers in LQFP64 package, and may not be suitable for other devices or packages. It is important to verify the compatibility of the adapter with the specific microcontroller you intend to use before proceeding with programming or testing operations.
