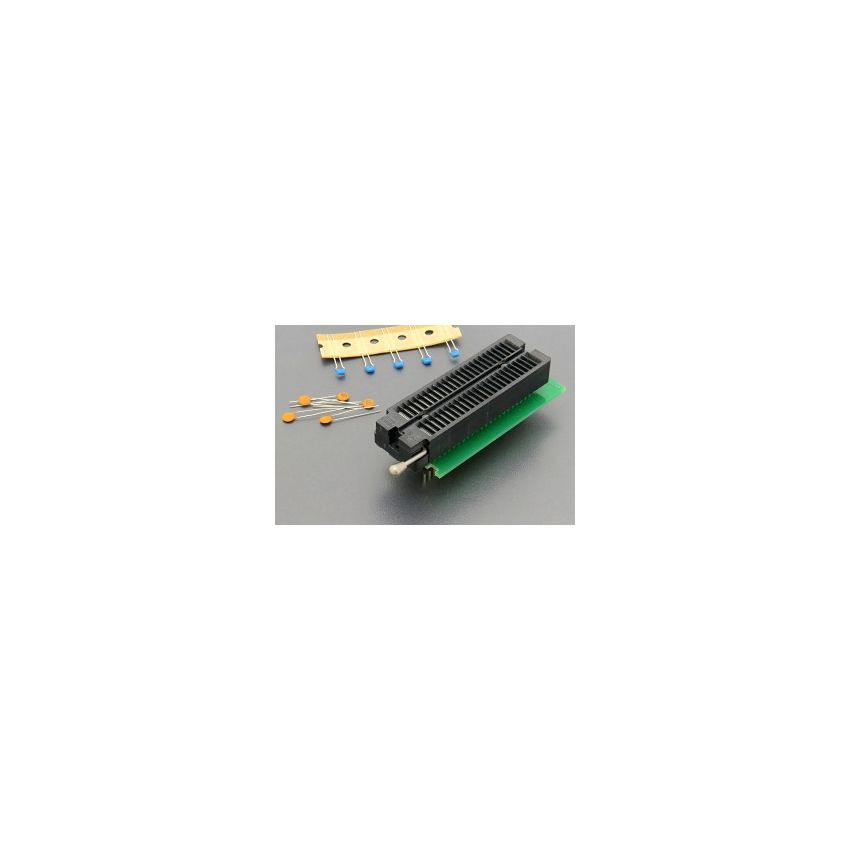

DIL48/DIL48 ZIF AddCap

This specialized adapter is designed to facilitate the easy addition of bypass capacitors for programming DIL (Dual In-Line) devices. The adapter features a ZIF (Zero Insertion Force) socket with a mechanical warranty of 25,000 actuations, ensuring its durability and reliable performance during repeated usage.



The adapter is manufactured in Slovakia and is identified by the order number (Ord. no.) 70-0803. It is specifically designed for use with devices in DIL48 package, allowing for easy connection and programming of such devices.



The bottom of the adapter features 2x24 pins arranged in a square configuration, with a row spacing of 600 mil (0.6 inches). This configuration allows for easy and secure connection of the DIL device to the adapter during programming operations, while also providing convenient access for adding bypass capacitors to ensure stable and reliable programming results.
