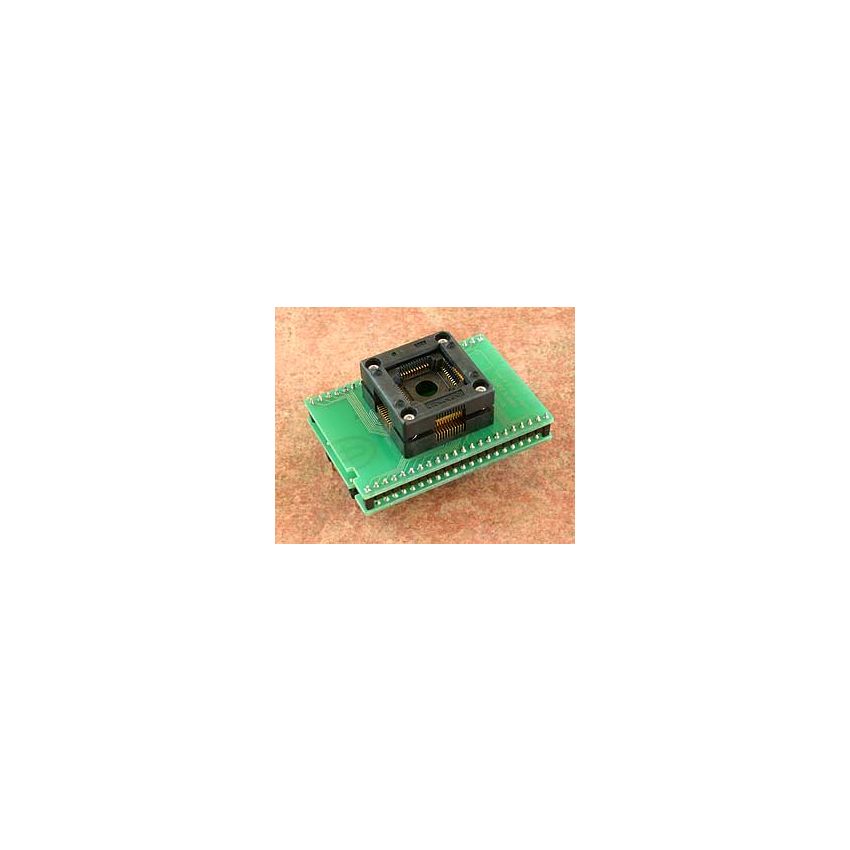

DIL44/TQFP44-3 ZIF

The universal adapter is designed for programming and testing devices in QFP44/PQFP44/TQFP44 packages, such as Zilog Z86xxx series devices. It provides a reliable solution for programming and testing a wide range of devices in these package types.



The universal adapter features a ZIF (Zero Insertion Force) socket with a QFP44 type design, known as OpenTop type, allowing for easy insertion and removal of devices during programming and testing. The ZIF socket has an operating (mechanical) warranty of 10,000 actuations, indicating its durability and longevity for repeated use.



The bottom of the universal adapter has 2 rows with 2x22 pins each, arranged in a square pattern with a pitch of 0.6x0.6mm (600 mil) between the rows. This configuration is specifically designed for devices in QFP44/PQFP44/TQFP44 packages, providing a secure and reliable connection during programming and testing.



The universal adapter is made in Slovakia, known for its quality manufacturing, and is identified by the Ord. no. 70-0146. It provides a reliable solution for programming and testing devices in QFP44/PQFP44/TQFP44 packages, offering durability, versatility, and ease of use for programming needs.
