DIL44/SOIC44 ZIF-CS

SKU
ELNx2650
Brand:
Delivery in 2 Weeks.
Pre-Order
Only 1 left
Add to Wish List

Guarantee safe & secure checkout

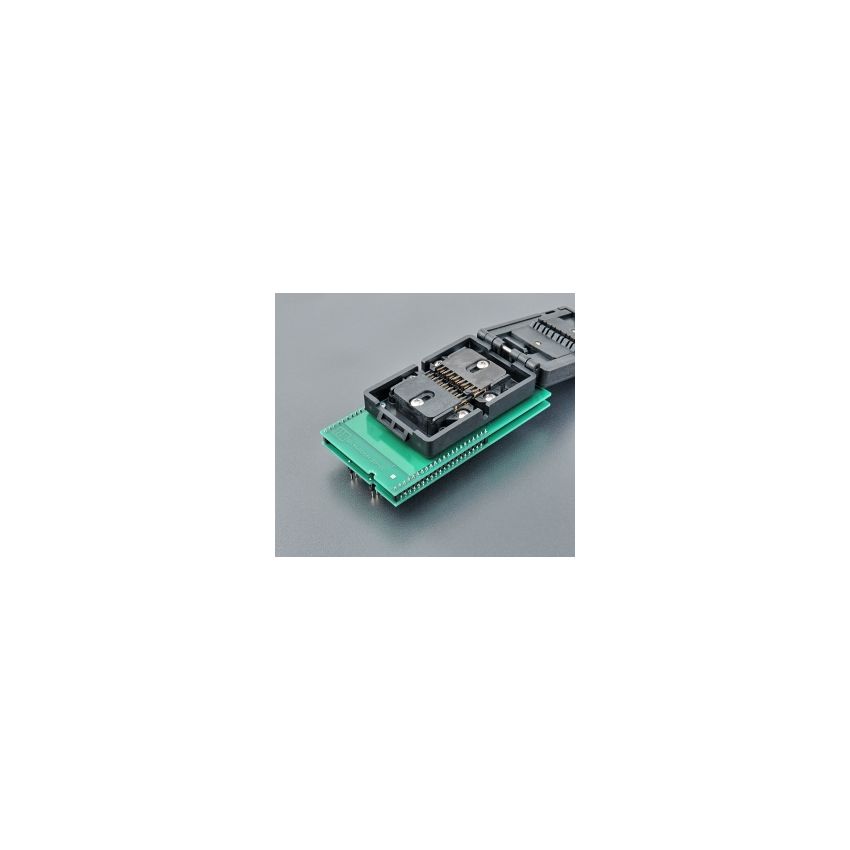

The universal adapter is designed to be used with SOIC/SOP/PSOP/TSOP devices with up to 44 pins, such as EPROMs, FLASHs, SRAMs, and other similar devices. It accepts SOIC gull wing and J lead devices on a 50mil (1.27mm) lead pitch, with body widths ranging from 150mil to 600mil (3.81mm to 15.24mm), providing versatility in accommodating different device sizes.

The adapter features a ZIF (Zero Insertion Force) socket with a ClamShell type design, allowing for easy insertion and removal of devices for programming. The ZIF socket has an operating (mechanical) warranty of 25,000 actuations, ensuring its durability and long-lasting performance.

The bottom of the adapter has 2 rows with 2x22 pins each, arranged in a square pattern with a pitch of 0.6x0.6mm (600 mil) between the rows. This configuration is specifically tailored to the pinout arrangement of SOIC/SOP/PSOP/TSOP devices with up to 44 pins, ensuring a secure and reliable connection during programming.

The adapter is made in Slovakia, known for its quality manufacturing. It is identified by the Ord. no. 70-0043, and is suitable for programming various devices with different pin counts and body widths in the SOIC/SOP/PSOP/TSOP packages.
