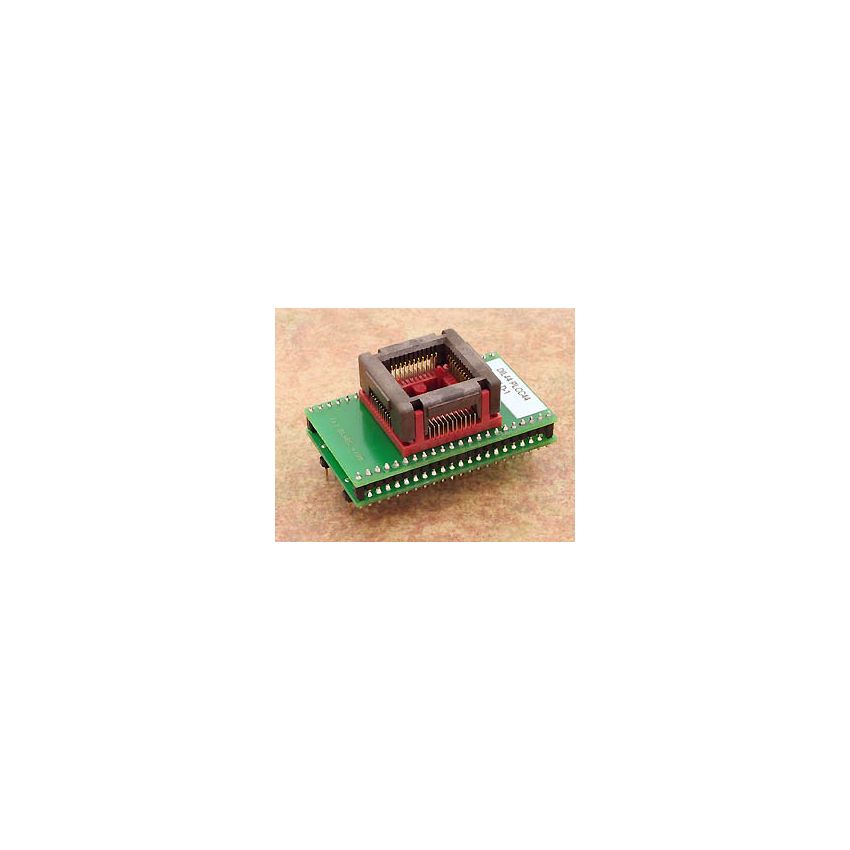

DIL44/PLCC44 ZIF PLD-1

The special adapter with Ord. no. 70-0470 is specifically designed for obsolete CPLD (Complex Programmable Logic Device) devices, such as the Cypress CY7C343B, in a PLCC44 (Plastic Leaded Chip Carrier) package. This adapter allows for easy programming or testing of these obsolete devices in a professional environment.



The ZIF (Zero Insertion Force) socket on this adapter has an operating (mechanical) warranty of 10,000 actuations, ensuring reliable and durable performance during repeated usage. The OpenTop type of ZIF socket allows for easy insertion and removal of the PLCC44 devices without applying excessive force, minimizing the risk of damaging the devices or the adapter.



The bottom of the adapter features 2 rows of 2x22 pins, arranged in a square pattern with a spacing of 0.6x0.6mm and a row spacing of 600mil. These pins provide a secure and reliable connection between the adapter and the target device, ensuring efficient communication and operation during programming or testing.



The adapter is made in Slovakia and meets high-quality standards for reliable operation. The Ord. no. 70-0470 serves as a unique identifier for this specific adapter, making it easy to identify and track in a professional environment. It is important to follow the manufacturer's guidelines for proper usage of the adapter and the target devices to ensure correct functionality and avoid potential damage to the devices or the adapter.
