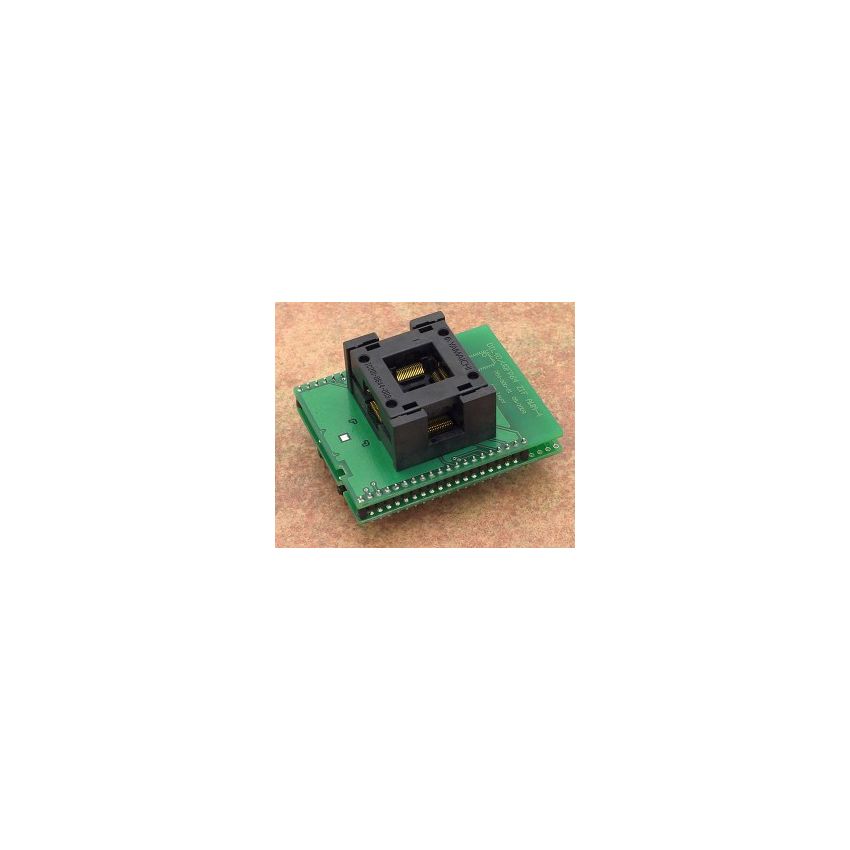

DIL40/VQFP64 ZIF AWM-4

The special adapter with order number 70-0706 is designed for use with Atmel AT89C5130/89C5131 microcontrollers in QFP64 packages. This adapter provides a reliable and convenient solution for programming and testing AT89C5130/89C5131 microcontrollers during development and production processes.



The adapter features a ZIF (Zero Insertion Force) socket in a QFP64 package with an OpenTop type design, allowing for easy insertion and removal of the devices for programming and testing purposes. The ZIF socket has a mechanical warranty of 10,000 actuations, ensuring durability and long-term reliability.



The bottom board of the adapter features 2 rows of 2x20 pins in a square configuration, with a pin pitch of 0.6x0.6mm and row spacing of 600mil. This configuration is specifically designed for compatibility with Atmel AT89C5130/89C5131 microcontrollers in QFP64 packages, providing precise and secure connections for programming and testing purposes.



The adapter is made in Slovakia to high manufacturing standards, ensuring quality and reliability. The order number for this special adapter is 70-0706, and it is designed for use with Atmel AT89C5130/89C5131 microcontrollers in QFP64 packages.
