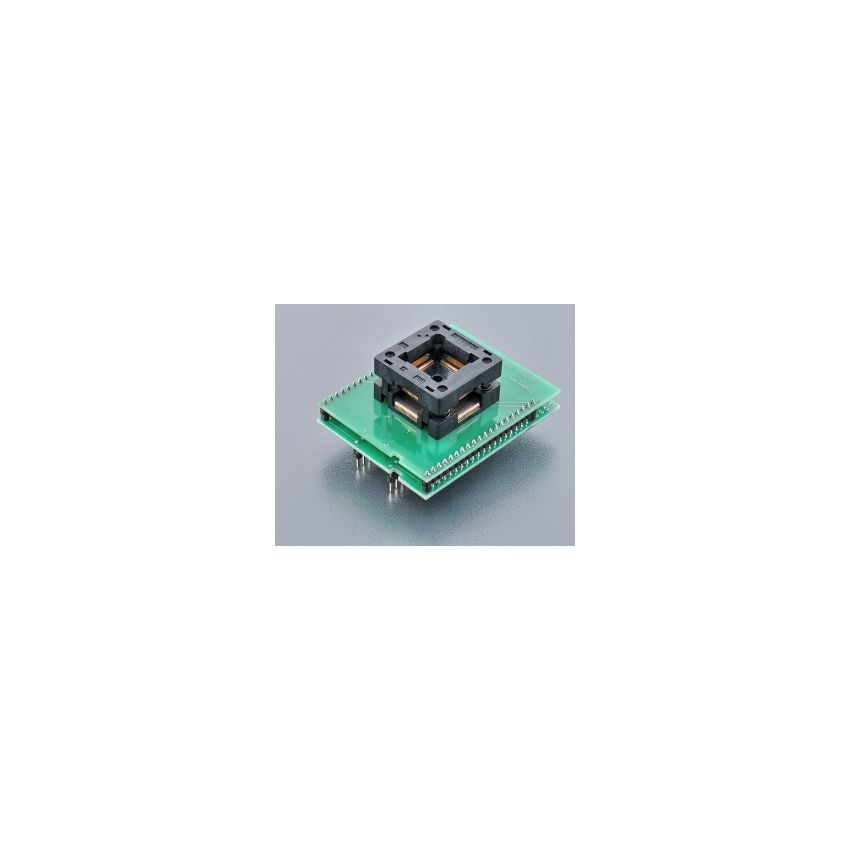

DIL40/TQFP80 ZIF PIC-2

The special adapter with order number 70-0441 is designed for use with PICmicro devices in TQFP80 packages, specifically PIC18FxxJxx, dsPIC33F, and PIC24F/H microcontrollers. This adapter provides a convenient and reliable solution for programming and testing these devices during development and production processes.



The adapter features a ZIF (Zero Insertion Force) socket in a QFP80 package with an OpenTop type design, allowing for easy insertion and removal of the devices for programming and testing purposes. The ZIF socket has a mechanical warranty of 10,000 actuations, ensuring durability and long-term reliability.



The bottom board of the adapter features 2 rows of 2x20 pins in a square configuration, with a pin pitch of 0.6x0.6mm and row spacing of 600mil. This configuration is specifically designed for compatibility with devices in TQFP80 packages, providing precise and secure connections for programming and testing purposes.



The adapter is made in Slovakia to high manufacturing standards, ensuring quality and reliability. The order number for this special adapter is 70-0441, and it is designed for use with PICmicro devices in TQFP80 packages, including PIC18FxxJxx, dsPIC33F, and PIC24F/H microcontrollers.
