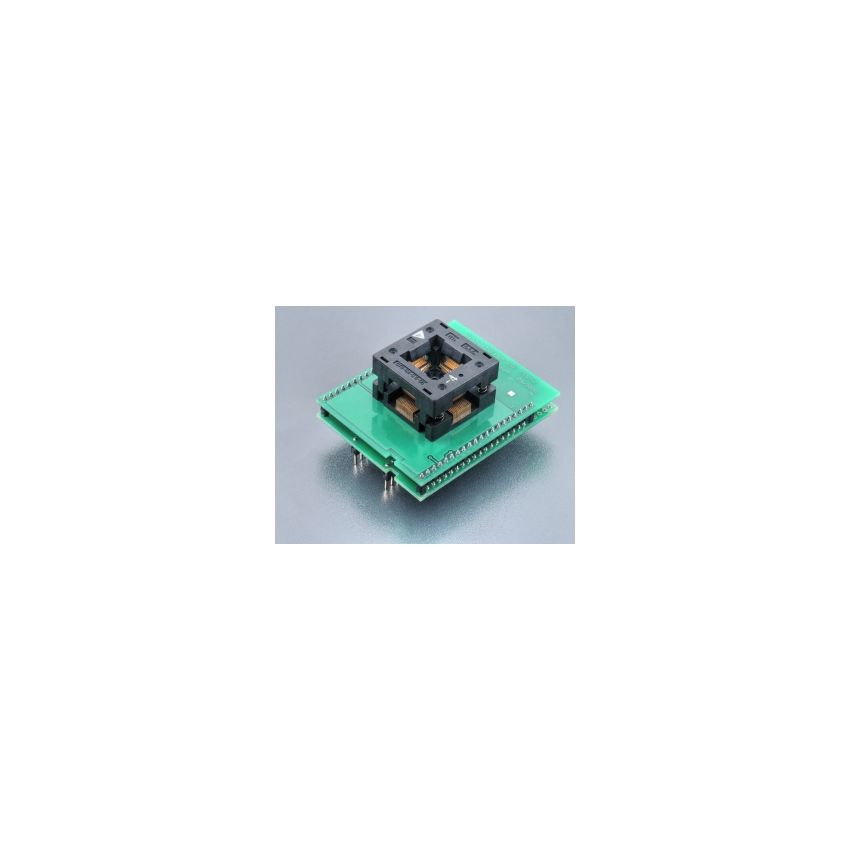

DIL40/TQFP64 ZIF PIC-2

The special adapter with Ord. no. 70-0440 is specifically designed for use with PICmicro devices in TQFP64 package, including PIC18FxxJxx, dsPIC33F, and PIC24F/H series. The adapter is made in Slovakia and is constructed to high-quality standards to ensure reliable performance.



The adapter features a ZIF (Zero Insertion Force) socket in QFP64 (Quad Flat Package) configuration, with an OpenTop type for easy insertion and removal of the PICmicro device. The ZIF socket has a mechanical warranty of 10,000 actuations, ensuring durability and longevity.



The bottom board of the adapter has 2 rows of 2x 20 pins each, arranged in a square pattern with a pin spacing of 0.6x0.6mm and rows spacing of 600mil. These pins are designed to provide a reliable electrical connection to the corresponding pins on the PICmicro device in the TQFP64 package.



The Ord. no. 70-0440 serves as a unique identifier for this specific adapter, making it easy to identify and track in a professional environment. It is important to verify the compatibility of the adapter with the specific PICmicro device model and package type before proceeding with programming or testing operations to ensure proper functionality and avoid potential damage to the PICmicro device or the adapter.
