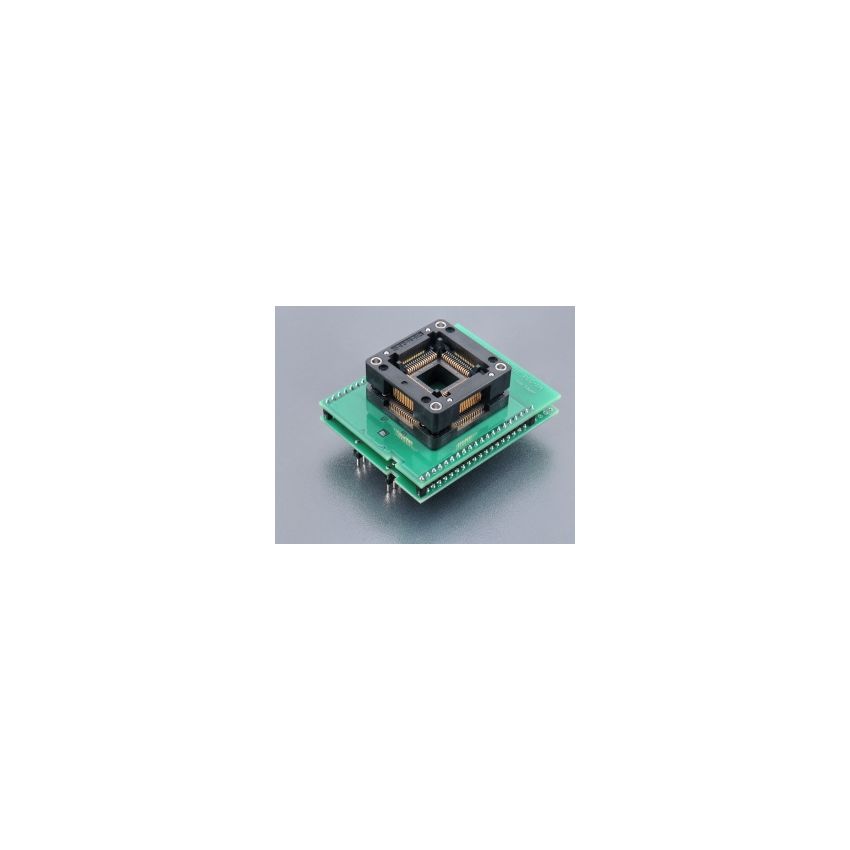

DIL40/TQFP64-2 ZIF PIC-1A

The specialized programming adapter with order number 70-0702 is designed for use with Microchip dsPIC30F family devices in TQFP64 (14x14) packages. This adapter provides a reliable and convenient solution for programming and testing dsPIC30F microcontrollers during development and production processes.



The adapter features a ZIF (Zero Insertion Force) socket in a QFP64 package with an OpenTop type design, allowing for easy insertion and removal of the devices for programming and testing purposes. The ZIF socket has a mechanical warranty of 10,000 actuations, ensuring durability and long-term reliability.



The bottom board of the adapter features 2 rows of 2x24 pins in a square configuration, with a pin pitch of 0.6x0.6mm and row spacing of 600mil. This configuration is specifically designed for compatibility with dsPIC30F devices in TQFP64 (14x14) packages, providing precise and secure connections for programming and testing purposes.



The adapter is supported from PG4UW software version 3.50t, ensuring compatibility with Microchip programming software for efficient and reliable device programming. It is made in Slovakia to high manufacturing standards, ensuring quality and reliability. The order number for this specialized programming adapter is 70-0702, and it is designed for use with Microchip dsPIC30F family devices in TQFP64 (14x14) packages.
