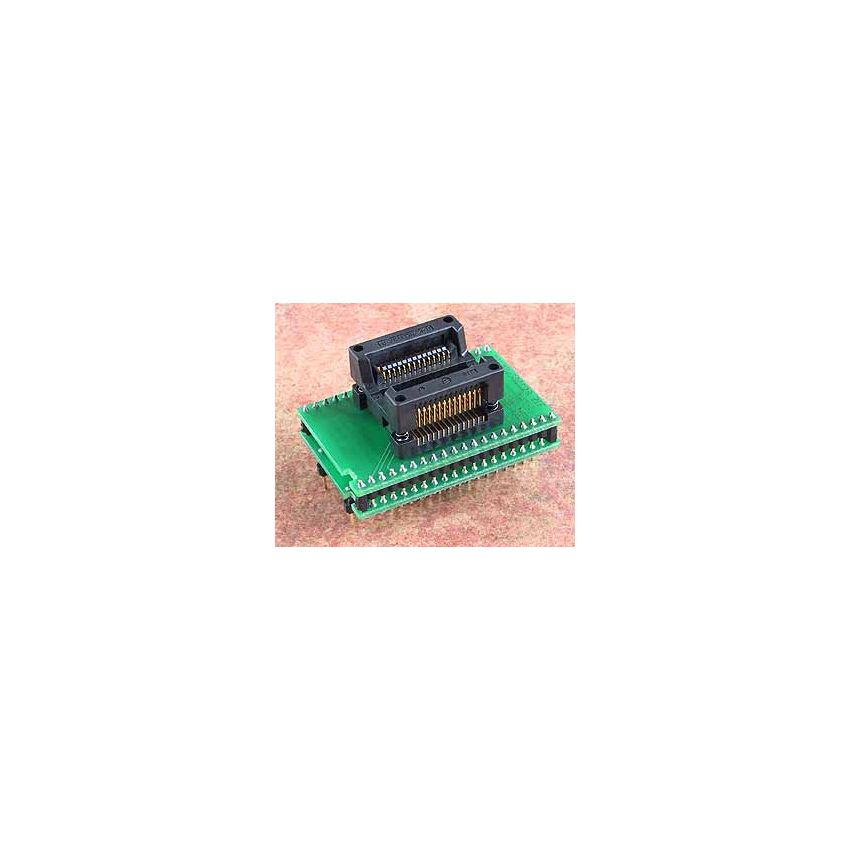

DIL40/SOIC28 ZIF AWM-1

The special adapter is specifically designed for use with Atmel (Temic) microcontrollers, including AT89C5115 and T89C51CC02, in SOIC28 (Small Outline Integrated Circuit) packages. It provides a reliable and convenient solution for programming and testing these microcontrollers.



The special adapter features a ZIF (Zero Insertion Force) socket with a SOIC28 OpenTop type design, which allows for easy insertion and removal of the Atmel (Temic) microcontrollers during programming and testing. The ZIF socket has an operating (mechanical) warranty of 10,000 actuations, indicating its durability and longevity for repeated use.



The special adapter has 2 rows with 2x20 pins each, arranged in a square pattern with a pitch of 0.6x0.6mm (600 mil) between the rows. This configuration is specifically designed for Atmel (Temic) microcontrollers in SOIC28 package, ensuring a secure and reliable connection during programming and testing.



The special adapter is made in Slovakia, known for its quality manufacturing, and is identified by the Ord. no. 70-0095. It provides a reliable solution for programming and testing Atmel (Temic) microcontrollers, offering durability, compatibility, and ease of use for programming needs.
