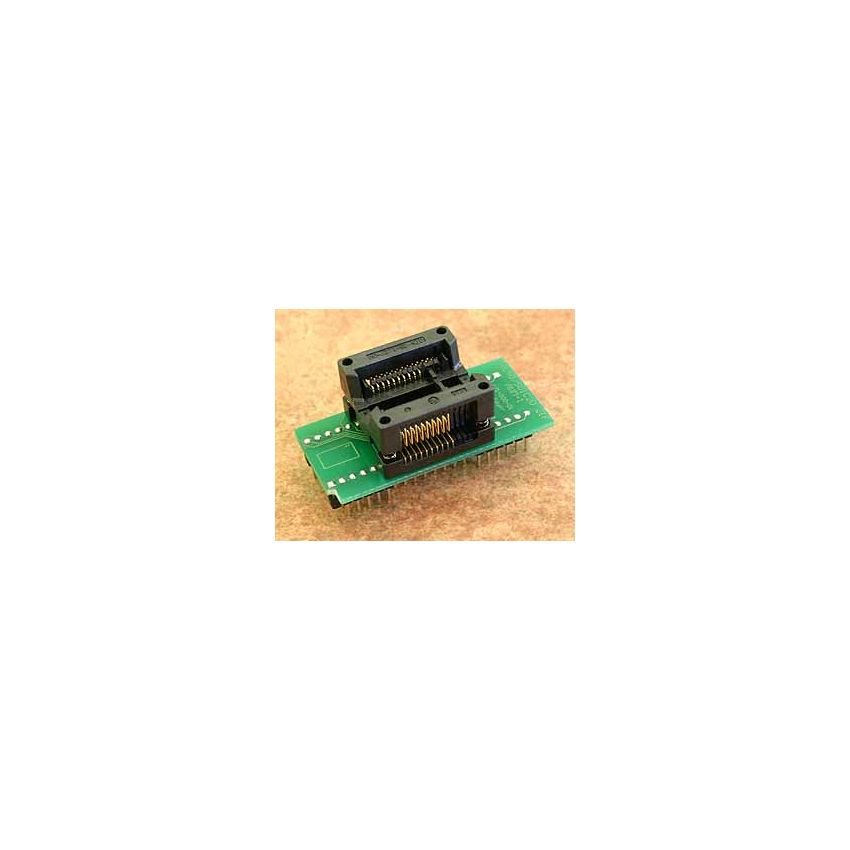

DIL40/SOIC20 ZIF AWM-1

The special adapter is specifically designed for Atmel (Temic) AT89C5114 and AT89EB5114 devices in SOIC20 packages, providing a reliable solution for programming and testing these devices.



The special adapter features a ZIF (Zero Insertion Force) socket with a SOIC20 type design, known as OpenTop type, allowing for easy insertion and removal of devices during programming and testing. The ZIF socket has an operating (mechanical) warranty of 10,000 actuations, indicating its durability and longevity for repeated use.



The bottom of the special adapter has 2 rows with 2x20 pins each, arranged in a square pattern with a pitch of 0.6x0.6mm (600 mil) between the rows. This configuration is specifically designed for SOIC20 packaged devices, providing a secure and reliable connection during programming and testing.



The special adapter is made in Slovakia, known for its quality manufacturing, and is identified by the Ord. no. 70-0143. It provides a reliable solution for programming and testing Atmel (Temic) AT89C5114 and AT89EB5114 devices in SOIC20 packages, offering durability, versatility, and ease of use for programming needs.
