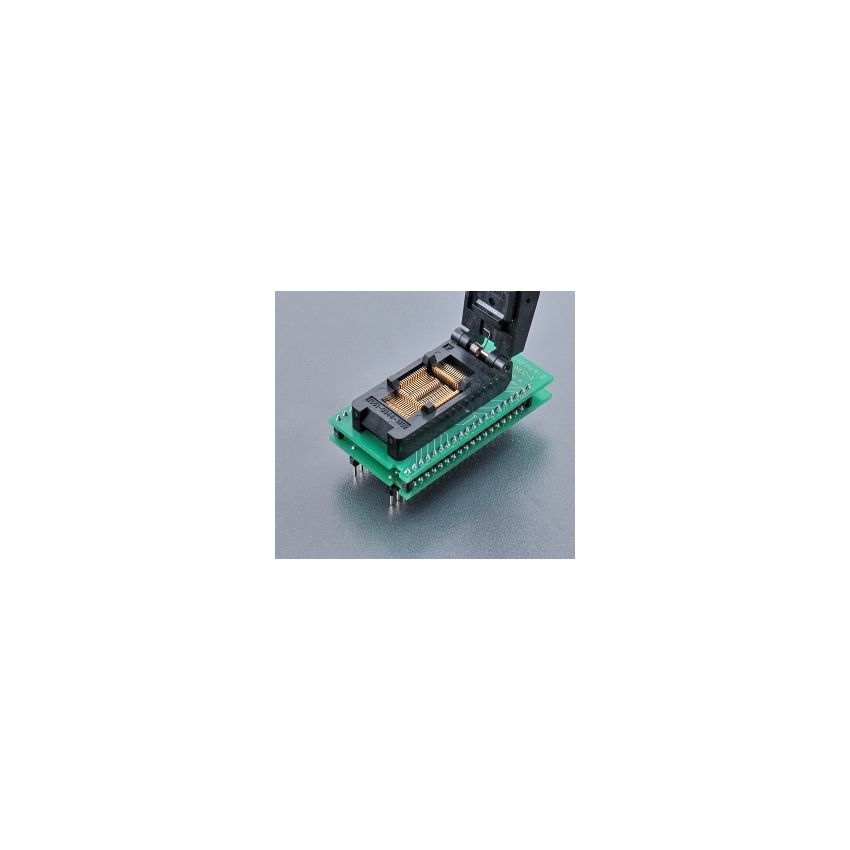

DIL40/QFP64-2 ZIF-CS NEC-1

The special adapter is designed for programming and testing NEC 78K/0 and 78K/0S Flash MCU (Microcontroller Unit) family devices that come in a QFP64 (Quad Flat Pack) package. The special adapter features a ZIF (Zero Insertion Force) socket with a ClamShell type design, known as ZIF QFP64 ClamShell, which allows for easy insertion and removal of devices during programming and testing. The ZIF socket has an operating (mechanical) warranty of 10,000 actuations, indicating its durability and longevity for repeated use.



The bottom of the special adapter has 2 rows with 2x20 pins each, arranged in a square pattern with a pitch of 0.6x0.6mm (600 mil) between the rows. This configuration is specifically designed for NEC 78K/0 and 78K/0S Flash MCU devices in QFP64 packages, providing a secure and reliable connection during programming and testing.



The special adapter is made in Slovakia, known for its quality manufacturing, and is identified by the Ord. no. 70-0239. This special adapter provides a reliable solution for programming and testing NEC 78K/0 and 78K/0S Flash MCU devices in QFP64 packages, offering durability, versatility, and ease of use for programming needs.
