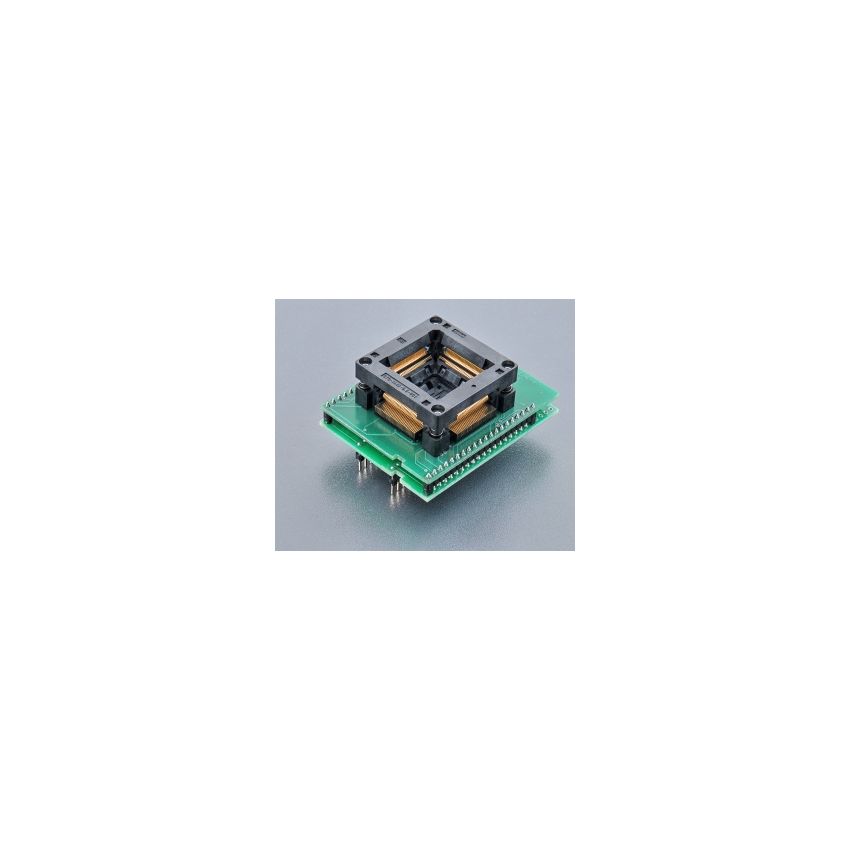

DIL40/QFP144 ZIF LPC-1

The special adapter is specifically designed for NXP/Philips LPC22xx family of microcontrollers, which are packaged in LQFP144 (Low-Profile Quad Flat Package) package. It is made in Slovakia and identified by Ord. no. 70-0297.



The adapter features a ZIF (Zero Insertion Force) socket with an operating (mechanical) warranty of 10,000 actuations. The ZIF socket allows for easy and secure insertion and removal of the LPC22xx microcontrollers during programming or testing operations, without the need for excessive force that could potentially damage the devices or the adapter.



The bottom part of the adapter has 2 rows of 2x20 pins, arranged in a square pattern with a pitch of 0.6x0.6mm (600 mil) between rows. These pins are designed to interface with the LQFP144 package of the NXP/Philips LPC22xx microcontrollers, providing a reliable and efficient solution for programming and testing operations.



The special adapter is made in Slovakia and identified by Ord. no. 70-0297. It features a ZIF QFP144 socket of the OpenTop type and is specifically designed for NXP/Philips LPC22xx family of microcontrollers, which are packaged in LQFP144 package, providing a reliable and efficient solution for programming and testing these devices.
