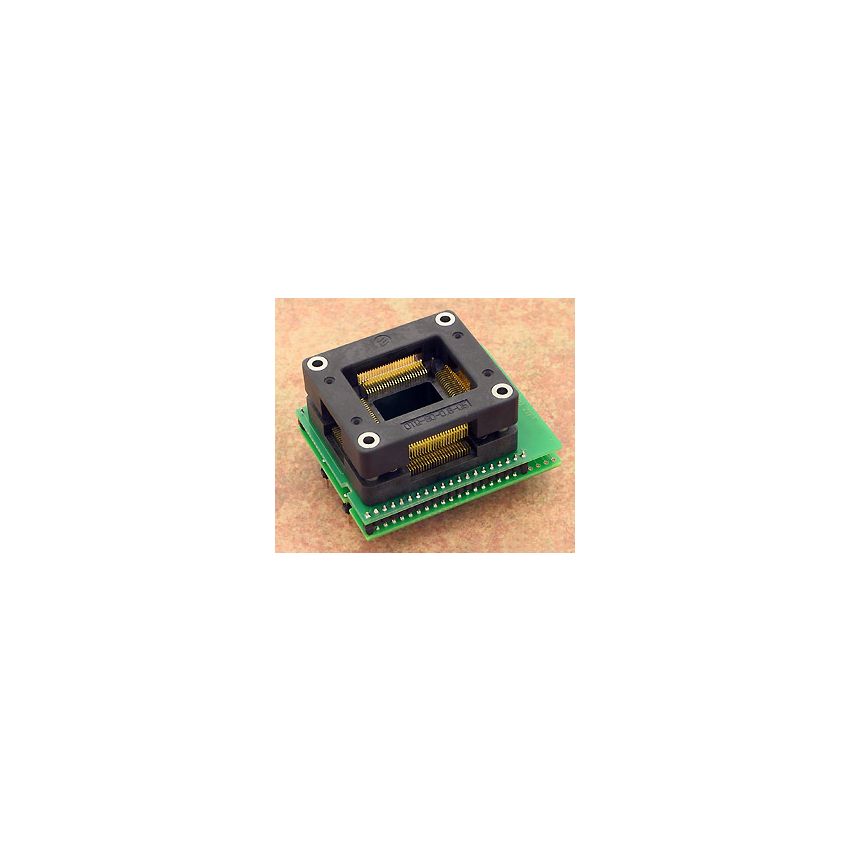

DIL40/PQFP80 ZIF M37702

The special adapter is specifically designed for the Renesas M37702Ex microcontroller in a PQFP80 (Plastic Quad Flat Package) package. It is manufactured in Slovakia and is identified by the order number 70-0652.



The adapter features a ZIF (Zero Insertion Force) socket in a QFP80 package configuration, designed with an OpenTop type for easy insertion and removal of the microcontroller during programming and testing. The ZIF socket has a mechanical warranty of 10,000 actuations, ensuring reliable and durable operation.



The bottom board of the adapter features 2 rows of 2x20 pins arranged in a square layout with a dimension of 0.6x0.6mm. The rows are spaced at 600 mil, providing appropriate spacing for efficient connectivity. This configuration is specifically designed to interface with the Renesas M37702Ex microcontroller in the PQFP80 package.
