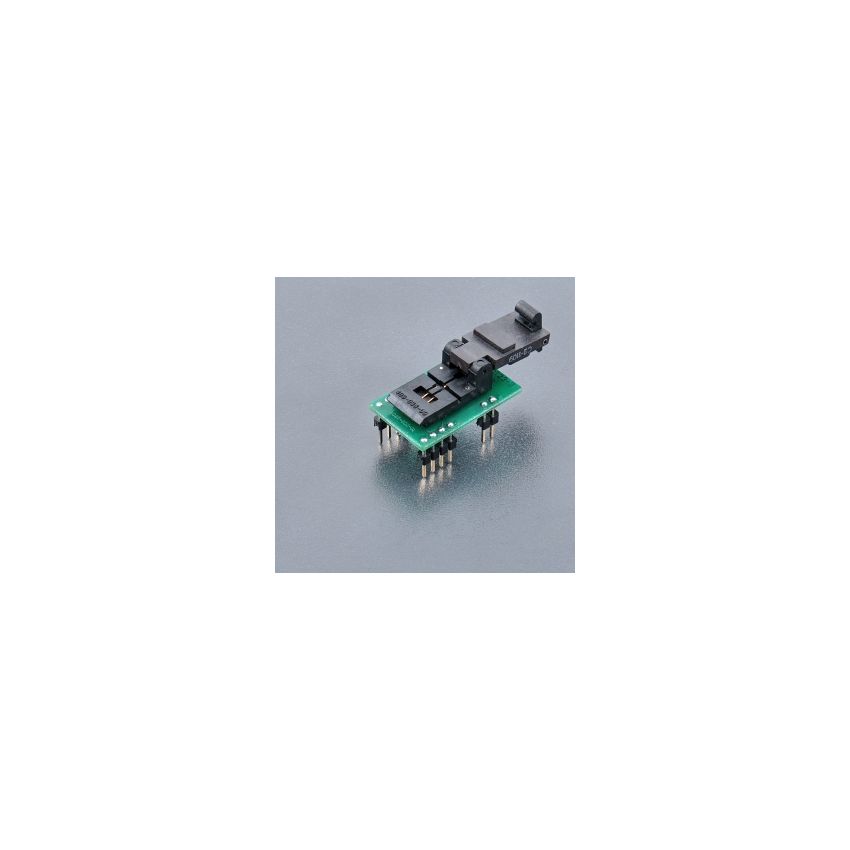

DIL3/SOT23-3 ZIF-CS

The universal adapter with Ord. no. 70-1025 is designed for devices in SOT23-3 package, such as serial EEPROMs. It features a ZIF (Zero Insertion Force) socket with a ClamShell type design, which allows for easy insertion and removal of the devices without applying excessive force. The ZIF socket has a mechanical warranty of 10,000 actuations, ensuring durability and reliability.



The adapter is made in Slovakia and is equipped with a bottom board that has a 2x4 pin configuration, with an additional 2x2 pins for improved stability. The pins are arranged in a square shape with dimensions of 0.6x0.6mm, and a row spacing of 600 mil. This pin configuration is designed to be compatible with SOT23-3 packages and allows for easy connection to a variety of devices.



It's important to refer to the manufacturer's documentation or contact the manufacturer directly for specific details on the compatibility of the adapter with different devices in SOT23-3 package, including pinout, pin spacing, and electrical compatibility. This will ensure that you have accurate and up-to-date information for your specific needs.
