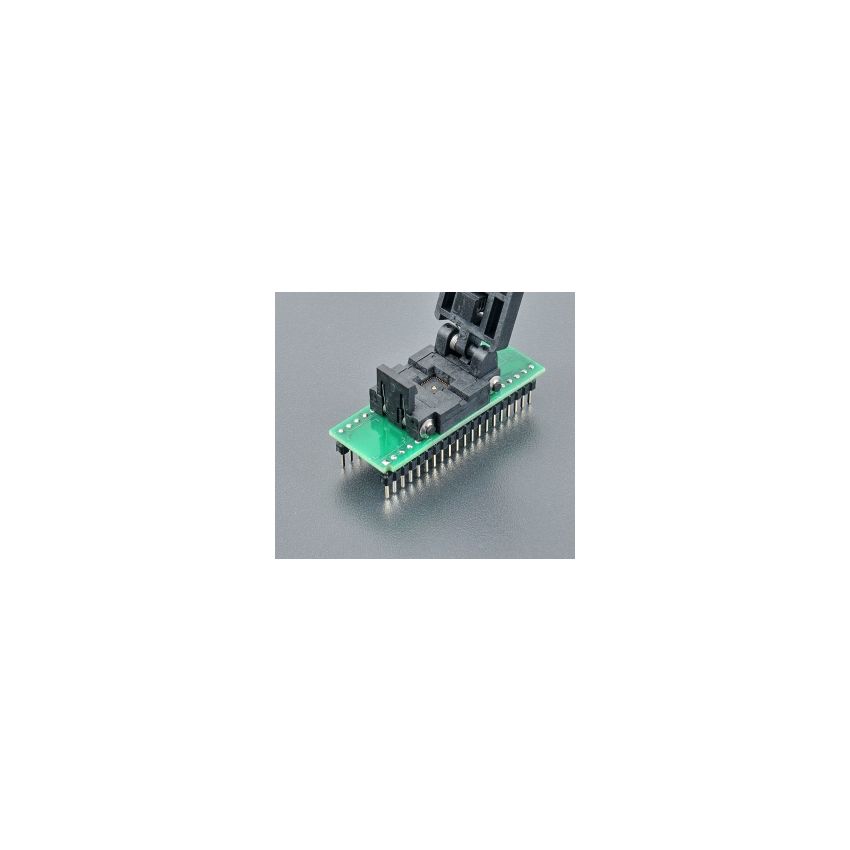

DIL37/QFN36-1 ZIF-CS

The universal adapter with order number 70-0764 is designed for use with devices in a QFN36/VFQFN36 package, such as TI (TMS) MSC120X and STM STM32F101. It features a ZIF (Zero Insertion Force) socket with a mechanical warranty of 5,000 actuations, providing reliable and durable performance for programming and interfacing operations. The adapter is made in Slovakia, ensuring high-quality construction and performance.



The ZIF socket on this adapter is of the ClamShell type, providing a convenient and secure way to insert and remove the devices in the QFN36/VFQFN36 package. The ClamShell design helps to prevent damage to the device or the adapter during insertion and removal.



The bottom of the adapter features 2 rows of 20 pins, arranged in a square pattern with a pin pitch of 0.6x0.6mm and rows spacing of 600mil. These pins provide the necessary connections for interfacing with devices in the QFN36/VFQFN36 package, enabling data transfer and programming operations.



The order number for this universal adapter is 70-0764, and it is made in Slovakia to high-quality standards. It is specifically designed for use with devices in a QFN36/VFQFN36 package, such as TI (TMS) MSC120X and STM STM32F101, and provides reliable and convenient programming and interfacing capabilities.
