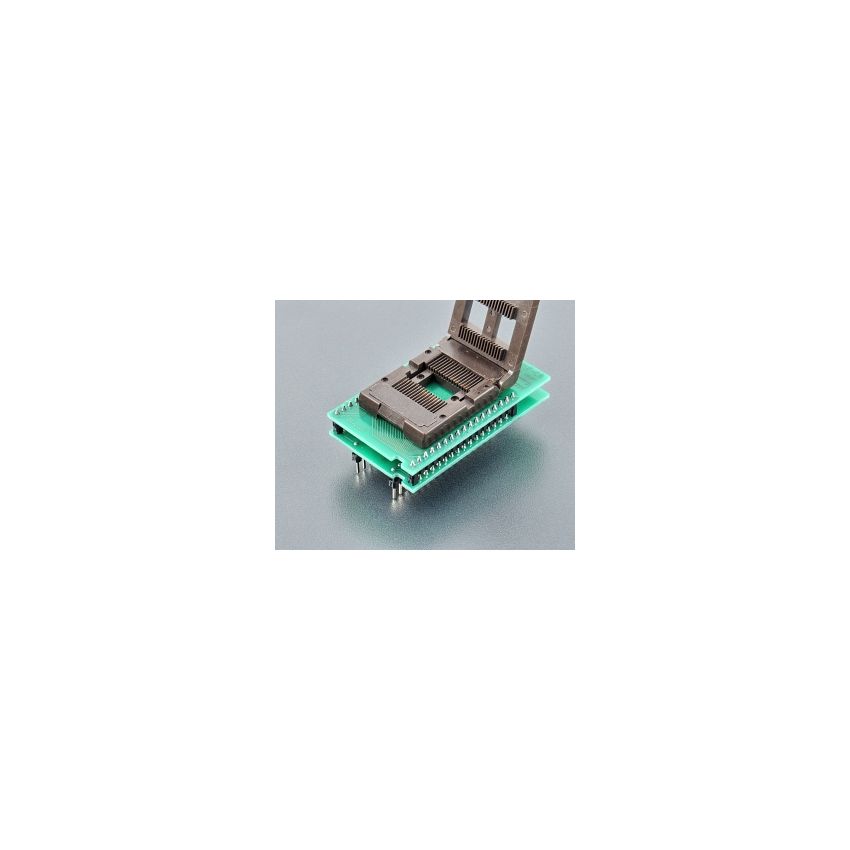

DIL34/SSOP34-1 ZIF-CS

The universal adapter is designed for devices in SSOP34 (Shrink Small Outline Package) or PSOP34 (Plastic Small Outline Package) packages, such as the STM ST7xx microcontrollers. The adapter is made in Slovakia and identified by Ord. no. 70-0306.



The adapter features a ZIF (Zero Insertion Force) socket with a mechanical warranty of 10,000 actuations. The ZIF socket allows for easy and secure insertion and removal of the SSOP34/PSOP34 devices during programming or testing operations, without the need for excessive force that could potentially damage the devices or the adapter.



The bottom part of the adapter has 2 rows of 2x17 pins, arranged in a square pattern with a pitch of 0.6x0.6mm (600 mil) between rows. These pins are designed to interface with the 34-pin SSOP or PSOP devices, such as the STM ST7xx microcontrollers, providing a reliable and efficient solution for programming and testing operations.



The special adapter is made in Slovakia and identified by Ord. no. 70-0306. It features a ZIF SSOP34 socket of the ClamShell type and is designed as a universal solution for programming and testing devices in SSOP34/PSOP34 packages, including the STM ST7xx microcontrollers and similar devices.
