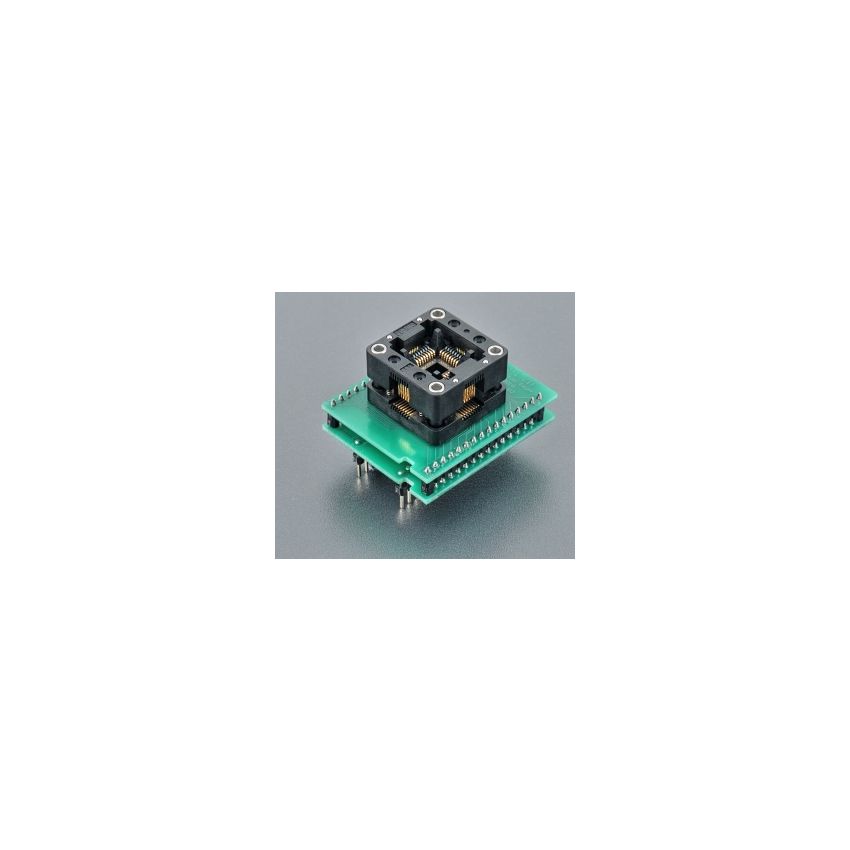

DIL32/TQFP32-1 ZIF

The universal adapter is designed for programming and testing devices in QFP32/LQFP32/TQFP32/VQFP32 packages, such as Silicon Laboratories C8051 series, STM ST7xxx series, Atmel ATmega, ATtiny series, Motorola/Freescale HC08 series, Renesas R8C/Tiny series, and other compatible microcontrollers. It provides a versatile solution for programming and testing these devices.



The universal adapter features a ZIF (Zero Insertion Force) socket with a QFP32 OpenTop type design, allowing for easy insertion and removal of the devices during programming and testing. The ZIF socket has an operating (mechanical) warranty of 10,000 actuations, indicating its durability and longevity for repeated use.



The universal adapter has 2 rows with 2x16 pins each, arranged in a square pattern with a pitch of 0.6x0.6mm (600 mil) between the rows. This configuration is specifically designed for QFP32/LQFP32/TQFP32/VQFP32 packaged microcontrollers, providing a secure and reliable connection during programming and testing for a wide range of microcontroller families, including Silicon Laboratories C8051 series, STM ST7xxx series, Atmel ATmega, ATtiny series, Motorola/Freescale HC08 series, Renesas R8C/Tiny series, and others.



The universal adapter is made in Slovakia, known for its quality manufacturing, and is identified by the Ord. no. 70-0135. It provides a reliable solution for programming and testing devices in QFP32/LQFP32/TQFP32/VQFP32 packages, offering durability, ease of use, and a high operating (mechanical) warranty for prolonged use.
