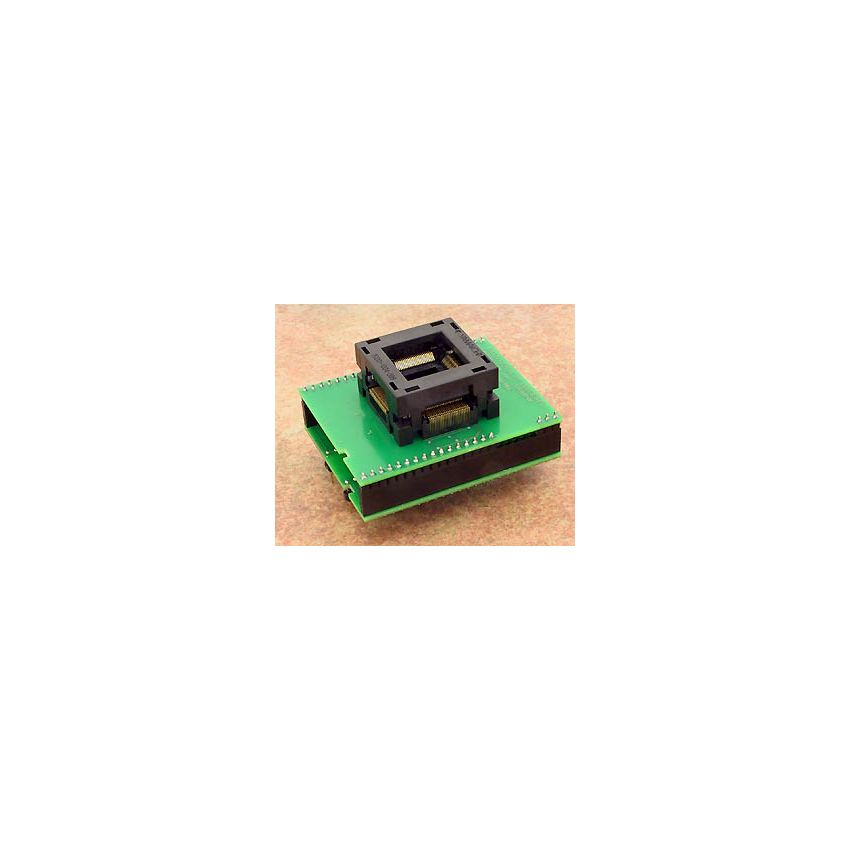

DIL32/TQFP100 ZIF HS3434ESNF1H

The special adapter with Ord. no. 70-0463 is specifically designed for programming Renesas (Hitachi) HD64F343xxTF microcontrollers in TQFP100 package. The adapter is made in Slovakia and adheres to high-quality standards for reliable performance and durability.



The adapter features a ZIF (Zero Insertion Force) socket of OpenTop type, designed to accept TQFP100 packages. The ZIF socket allows for easy insertion and removal of the microcontroller during programming or testing, with an operating (mechanical) warranty of 10,000 actuations. This ensures a long service life and reliable operation during multiple programming or testing cycles.



The bottom board of the adapter features 2 rows of 2x16 pins, with an additional 2x2 pins for improved stability. The pins are arranged in a square pattern with a spacing of 0.6x0.6mm and rows spacing of 600mil. These pins provide a secure and reliable connection between the adapter and the microcontroller, facilitating efficient communication and operation during programming or testing.



The Ord. no. 70-0463 serves as a unique identifier for this specific adapter, making it easy to identify and track in a professional environment. It is important to follow the manufacturer's guidelines for proper usage of the adapter and the microcontroller to ensure correct functionality and avoid potential damage to the microcontroller or the adapter.
