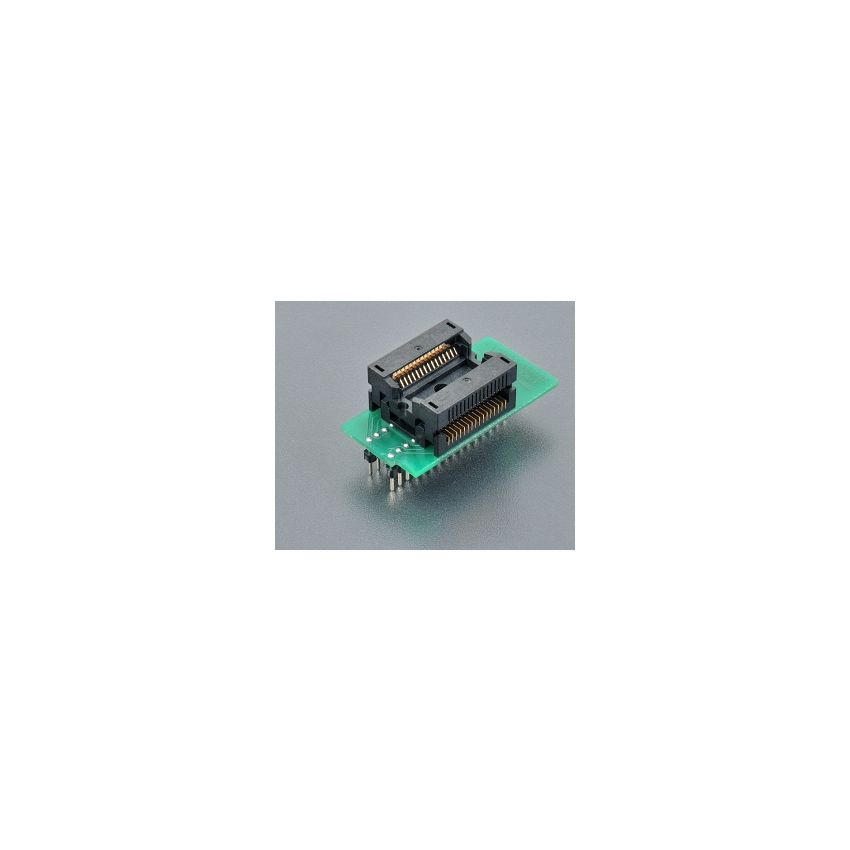

DIL32/SOIC32 ZIF 300mil

The universal adapter is designed for programming and testing devices in SOIC (Small Outline Integrated Circuit) packages with 32 pins, such as NVRAMs and Atmel AT90PWM series, among others. It features a ZIF (Zero Insertion Force) socket with a SOIC32 type design, known as OpenTop type, allowing for easy insertion and removal of devices during programming and testing. The ZIF socket has an operating (mechanical) warranty of 10,000 actuations, indicating its durability and longevity for repeated use.



The bottom of the universal adapter has 2 rows with 2x16 pins each, arranged in a square pattern with a pitch of 0.6x0.6mm (300 mil) between the rows. This configuration is specifically designed for SOIC devices with 32 pins, providing a secure and reliable connection during programming and testing.



The universal adapter is made in Slovakia, known for its quality manufacturing, and is identified by the Ord. no. 70-0183. It provides a reliable solution for programming and testing various devices in SOIC packages with 32 pins, offering durability, versatility, and ease of use for programming needs.
