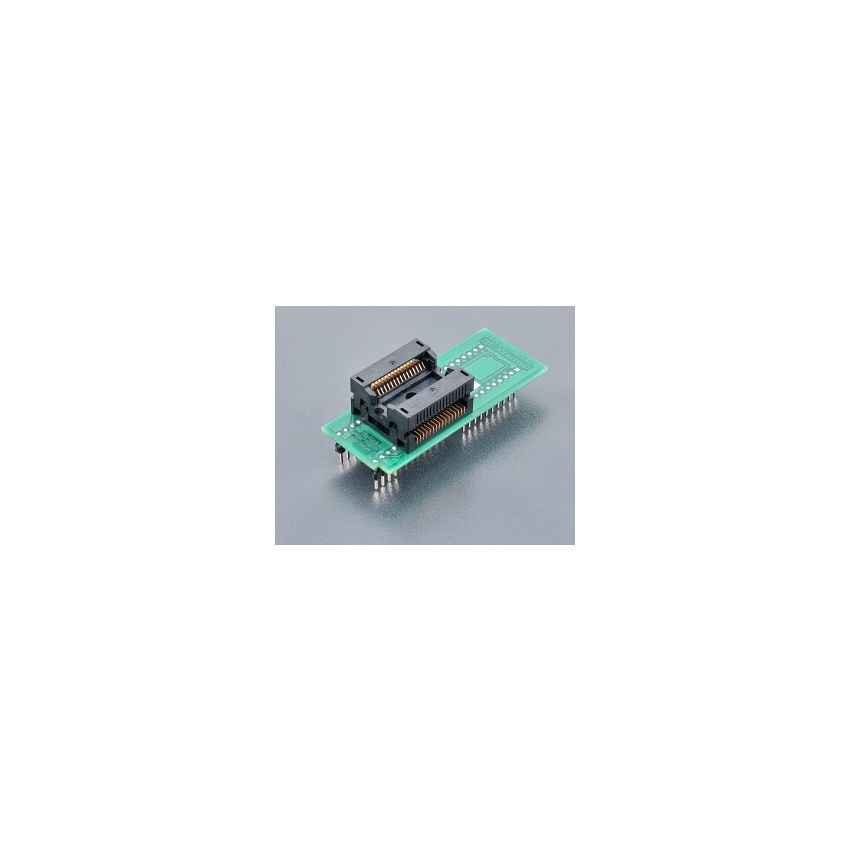

DIL32/SOIC32 ZIF 300mil (id)

The universal adapter is designed for programming and testing devices in SOIC (Small Outline Integrated Circuit) packages with 32 pins, featuring a body width of 300 mil (0.3 inches) and a pitch of 1.27mm (0.05 inches). It is equipped with a ZIF (Zero Insertion Force) socket with a SOIC32 type design, known as OpenTop type, allowing for easy insertion and removal of devices during programming and testing. The ZIF socket has an operating (mechanical) warranty of 10,000 actuations, indicating its durability and longevity for repeated use.



The bottom of the universal adapter has 2 rows with 2x24 pins each, arranged in a square pattern with a pitch of 0.6x0.6mm (600 mil) between the rows. This configuration is specifically designed for devices in SOIC32 packages with a row spacing of 600 mil, providing a secure and reliable connection during programming and testing.



The universal adapter is supported from PG4UW software version 3.19m, ensuring compatibility with the appropriate programming software. It is made in Slovakia, known for its quality manufacturing, and is identified by the Ord. no. 70-0183A. This universal adapter provides a reliable solution for programming and testing devices in SOIC32 packages with 300 mil body width, 1.27mm pitch, and a row spacing of 600 mil, offering durability, versatility, and ease of use for programming needs.
