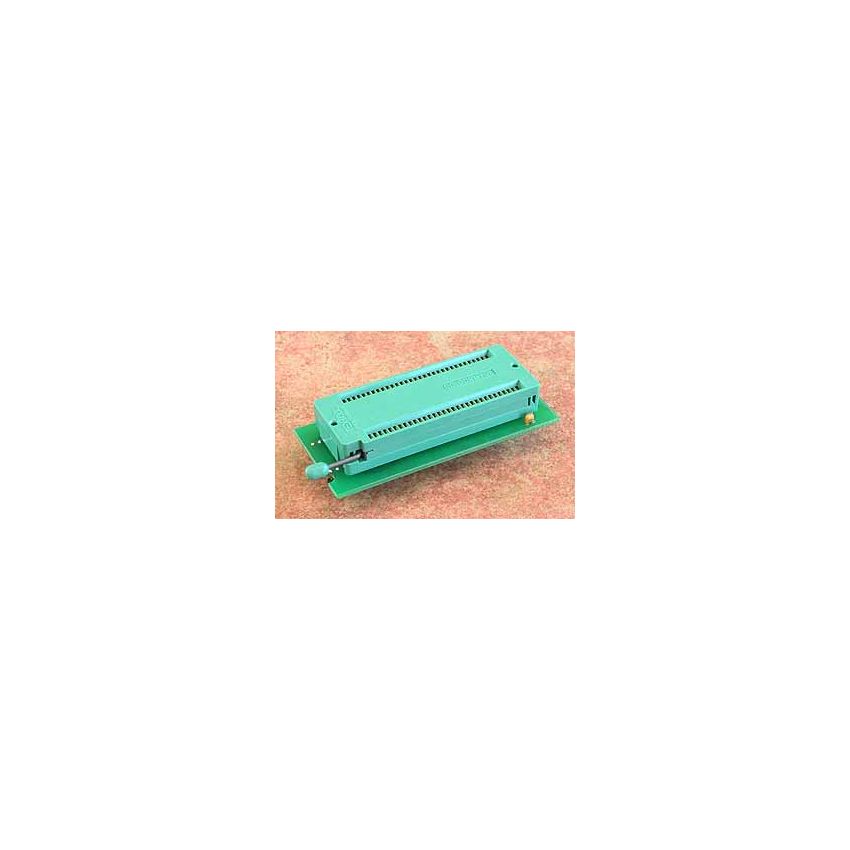

DIL32/SDIP64-1 ZIF Toshiba-BM1136

The special adapter is designed for use with Toshiba TMP87PH40A, TMP87PM40A, and TMP87PM41 microcontrollers, as well as equivalent devices that require the Toshiba-BM1136 adapter. The adapter features a ZIF (Zero Insertion Force) socket with an SDIP64 (Shrink Dual In-line Package) type design, which is compatible with the pinout arrangement of these specific microcontrollers.



The ZIF socket has an operating (mechanical) warranty of 20,000 actuations, indicating its durability and longevity for repeated use in programming and testing applications.



The bottom of the adapter has 2 rows with 2x16 pins each, arranged in a square pattern with a pitch of 0.6x0.6mm (600 mil) between the rows. This configuration is specifically tailored to the pinout arrangement of Toshiba TMP87PH40A, TMP87PM40A, and TMP87PM41 microcontrollers and equivalent devices, ensuring a secure and reliable connection during programming.



The special adapter is made in Slovakia, known for its quality manufacturing, and is identified by the Ord. no. 70-0080. It provides a reliable solution for programming and testing Toshiba microcontrollers that require the Toshiba-BM1136 adapter or equivalent, offering durability, compatibility with the specific microcontroller series, and versatility for programming requirements.
