DIL32/QFP64 ZIF H8-1

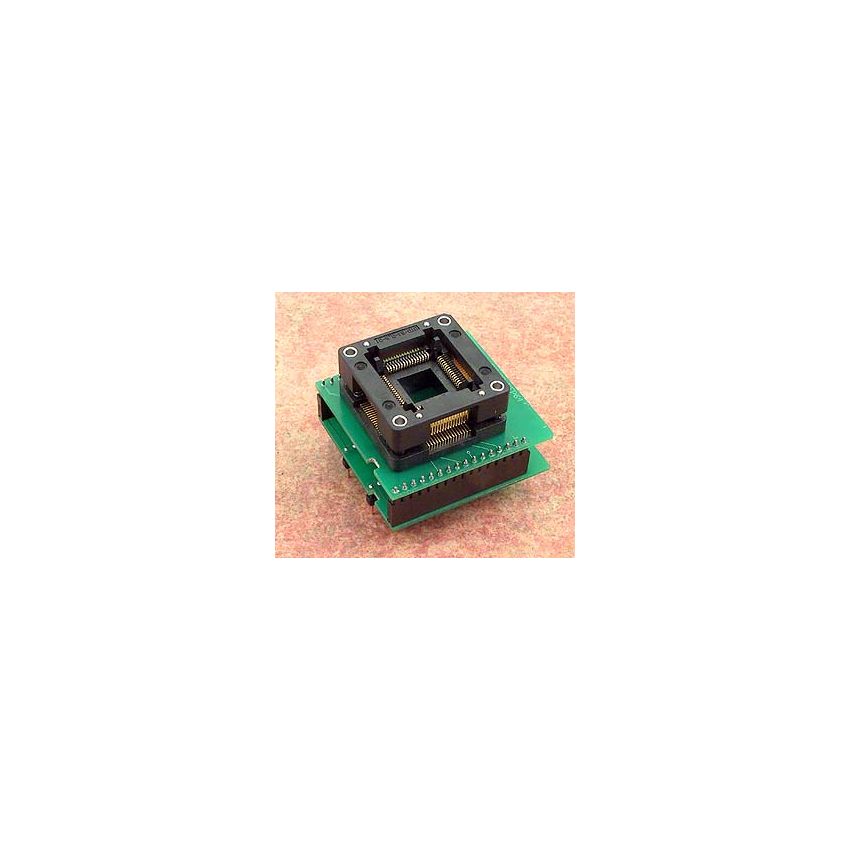

The special adapter with Ord. no. 70-0378 is designed for Renesas (Hitachi) HD64F3644, HD64F3643, and HD64F3642A microcontrollers in QFP64 package. It features a ZIF (Zero Insertion Force) socket with an OpenTop type design, specifically tailored for QFP64 packages, allowing for easy insertion and removal of devices during programming and testing operations.



The bottom board of the adapter features 2 rows of 2x 16 pins each, arranged in a square pattern with a pitch of 0.6x0.6mm and rows spacing of 600mil. This allows for precise and reliable connections between the adapter and the target devices, ensuring accurate programming and testing.



The ZIF socket on the adapter has a mechanical warranty of 10,000 actuations, providing durability and reliability in professional use. It is designed to withstand repeated actuations without compromising its performance or lifespan, ensuring a long-lasting and dependable solution for programming and testing Renesas (Hitachi) HD64F3644, HD64F3643, and HD64F3642A microcontrollers.



The adapter is made in Slovakia using high-quality materials and manufacturing processes, ensuring its quality and performance. The Ord. no. 70-0378 serves as a unique identifier for this specific adapter, making it easy to identify and track in a professional environment.



Please note that this adapter is specifically designed for Renesas (Hitachi) HD64F3644, HD64F3643, and HD64F3642A microcontrollers in QFP64 package, and may not be suitable for other devices or packages. It is important to verify the compatibility of the adapter with the specific devices you intend to use before proceeding with programming or testing operations.
