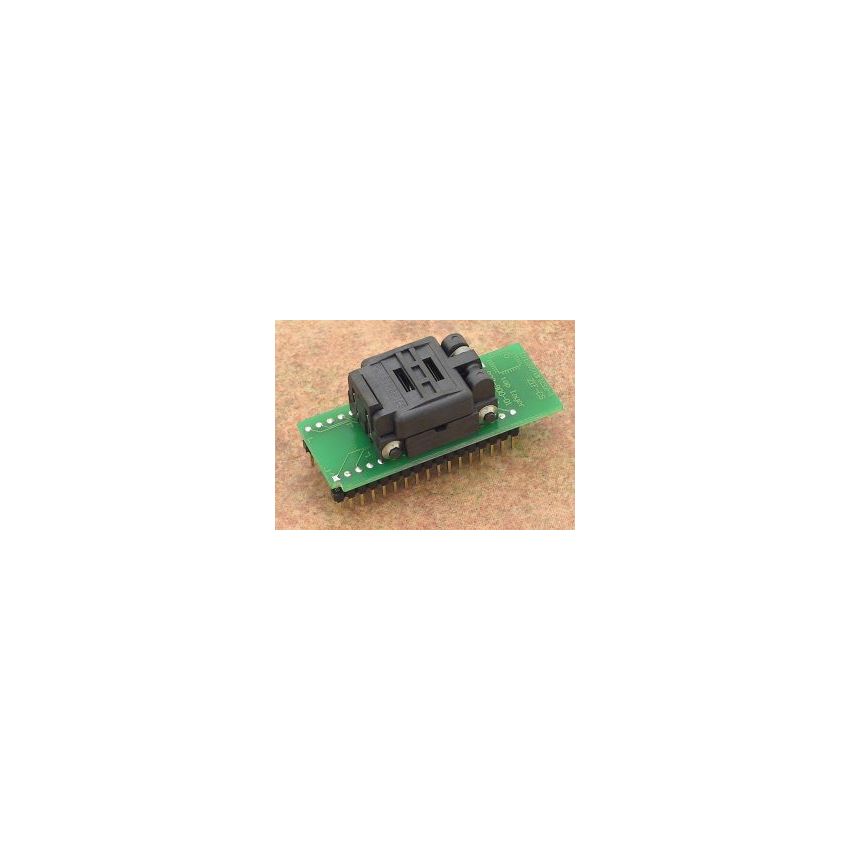

DIL32/QFN32-1 ZIF-CSa

The universal adapter is designed for devices in QFN32/MLF32 package, such as Atmel AT90PWM, ATmega series, and Maxim MAX687x series. It is compatible with devices in this package and can be used for programming and testing purposes.



The ZIF (Zero Insertion Force) socket on the adapter comes with a mechanical warranty of 5,000 actuations, ensuring durability and reliable performance. This makes it suitable for repeated programming and testing tasks, though with a slightly lower actuation limit compared to some other adapters.



The universal adapter is manufactured in Slovakia, known for its high-quality manufacturing standards, ensuring reliability and performance. The order number for this adapter is 70-0922A, which can be used for easy identification and ordering.



The ZIF socket on the adapter is of ClamShell type, which allows for easy insertion and removal of devices in QFN32/MLF32 package. The ClamShell design enables the top and bottom parts of the socket to be opened and closed, securely holding the device in place during programming and testing.



The bottom board of the adapter features 2x17 pins arranged in a square pattern with a pitch of 0.6x0.6mm and rows spacing of 600mil. This ensures a reliable connection to the devices and accurate operations during programming and testing.
