DIL28/TSSOP28 ZIF 170mil

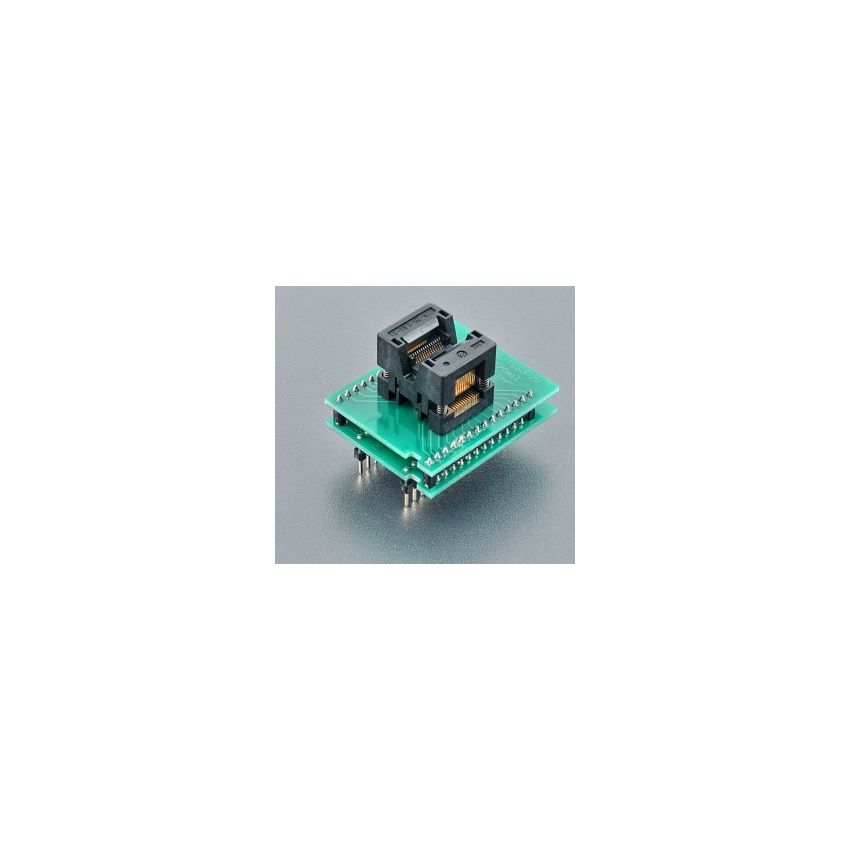

The universal adapter is designed for programming and testing devices in TSSOP28 package, such as Philips/NXP P89LPCxxx series, Freescale HC08, HCS08 series, TI (TMS) MSP430 series, Lattice PLDs, and IDT IDT5V19EExxx series. It features a ZIF (Zero Insertion Force) socket with a TSSOP28 type design, known as OpenTop type, allowing for easy insertion and removal of devices during programming and testing. The ZIF socket has an operating (mechanical) warranty of 10,000 actuations, indicating its durability and longevity for repeated use.



The bottom of the universal adapter has 2 rows with 2x14 pins each, arranged in a square pattern with a pitch of 0.6x0.6mm (600 mil) between the rows. This configuration is specifically designed for TSSOP28 devices, providing a secure and reliable connection during programming and testing.



The universal adapter is made in Slovakia, known for its quality manufacturing, and is identified by the Ord. no. 70-0164. It provides a reliable solution for programming and testing various devices in TSSOP28 package, offering durability, versatility, and ease of use for programming needs.
