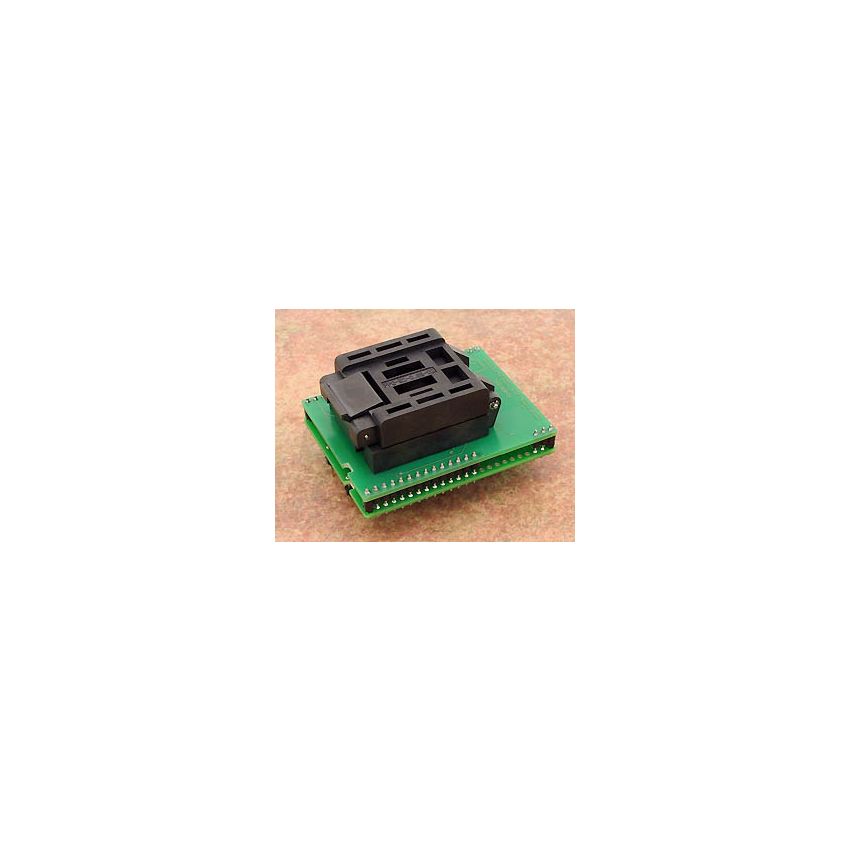

DIL28/QFP52 ZIF-CS SX52

The special adapter is specifically designed for use with Ubicom SX52BD microcontroller in PQFP52 package. It features a ZIF (Zero Insertion Force) socket with a ClamShell type design, which allows for easy and secure insertion and removal of the PQFP52 package.



The ZIF socket in this adapter has an operating (mechanical) warranty of 10,000 actuations, indicating its durability for repeated use. The adapter is made in Slovakia and is identified by Ord. no. 70-0268.



The bottom part of the adapter has 2 rows of 2x14 pins, with an additional 2x3 pins added for improved stability. The pins are arranged in a square pattern with a pitch of 0.6x0.6mm (600 mil), and the row spacing is also 600 mil. The bottom part of the adapter is designed to connect to the Ubicom SX52BD microcontroller in PQFP52 package.
